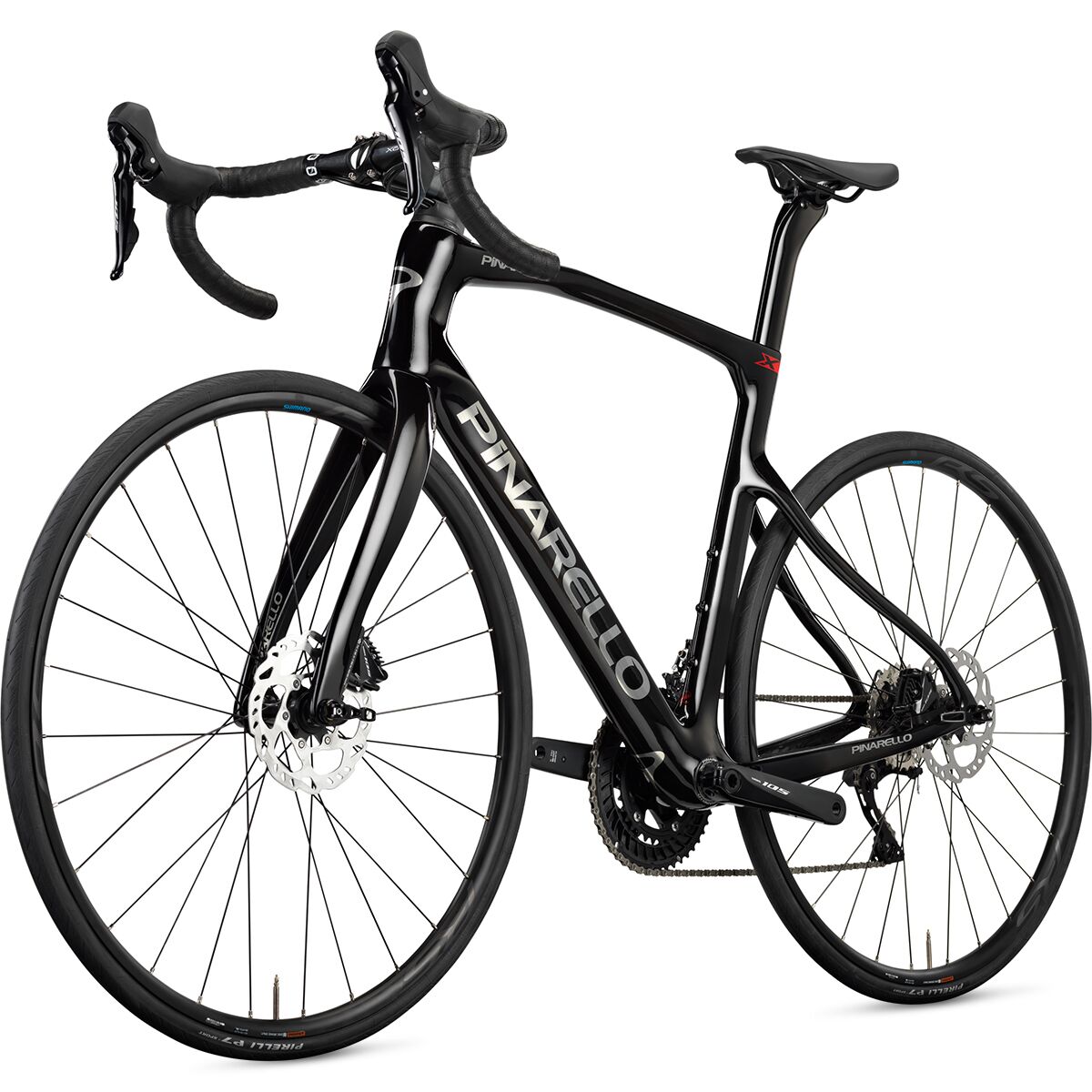

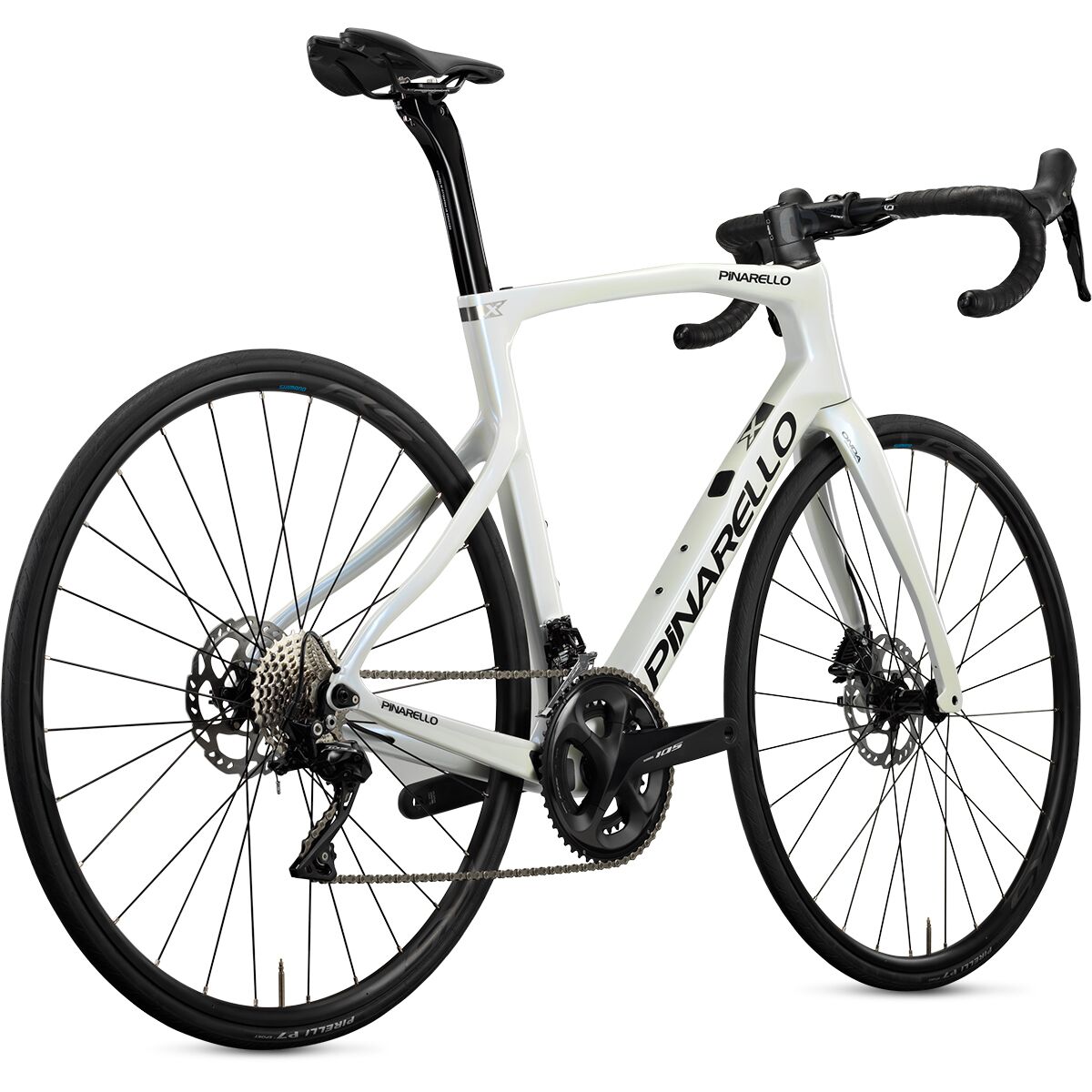

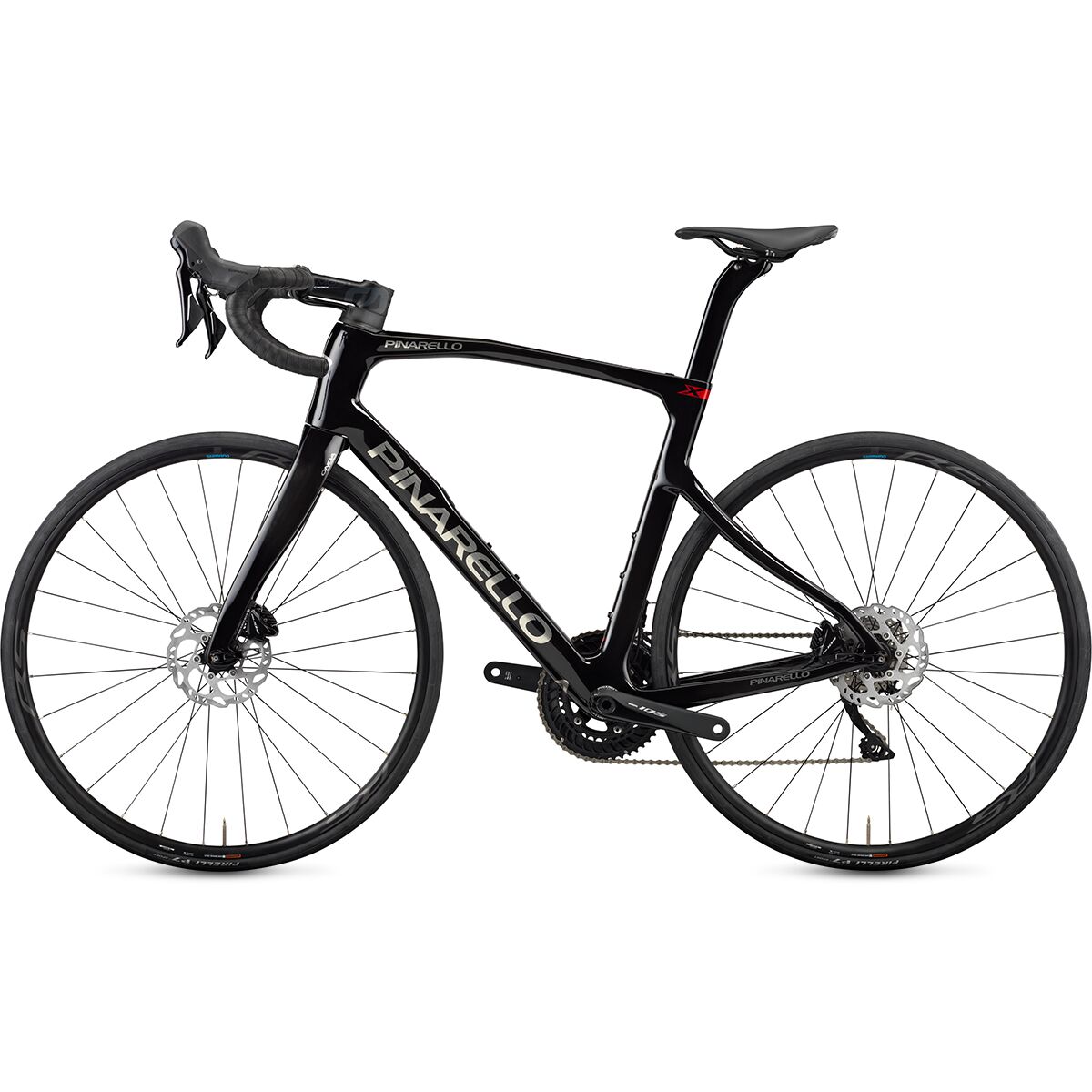

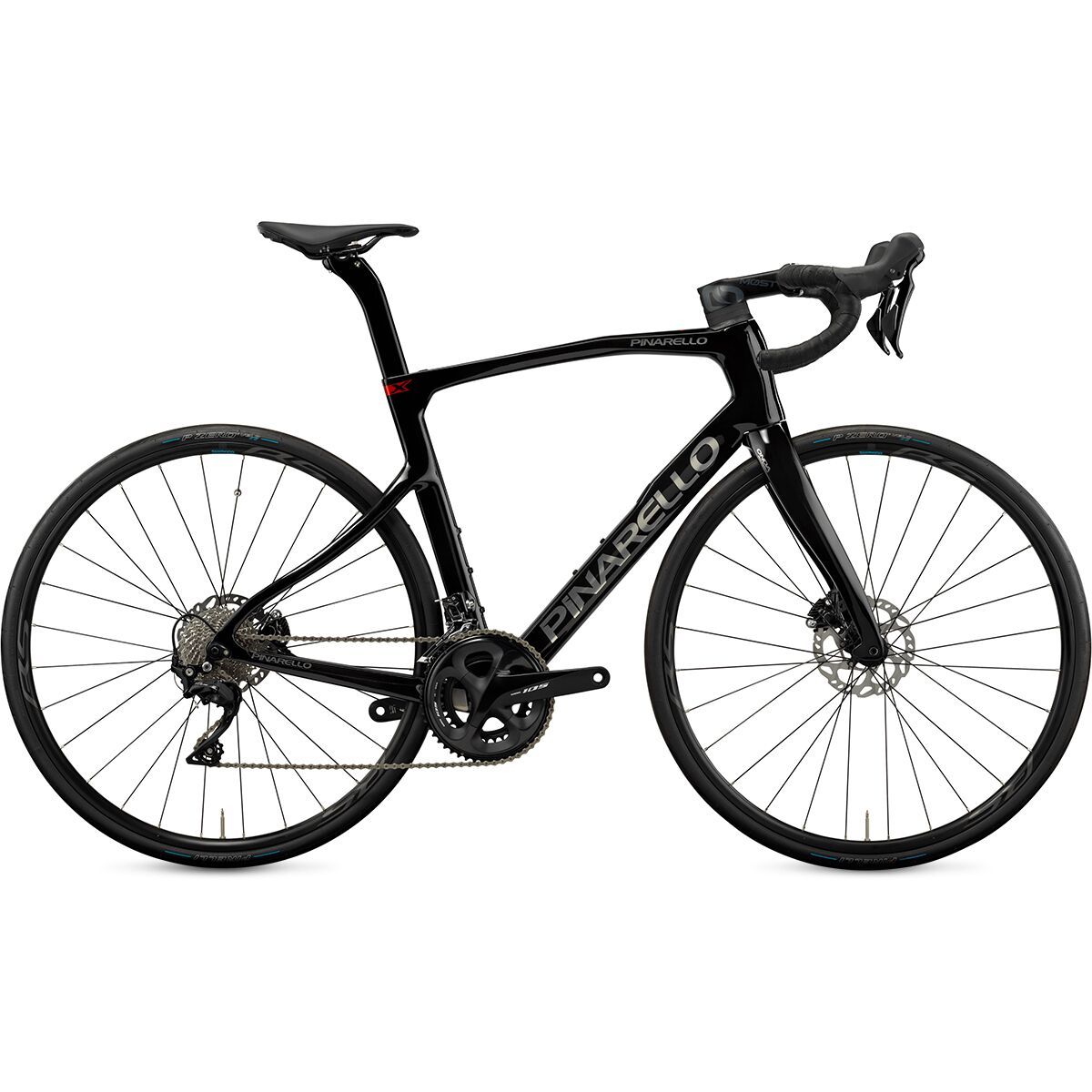

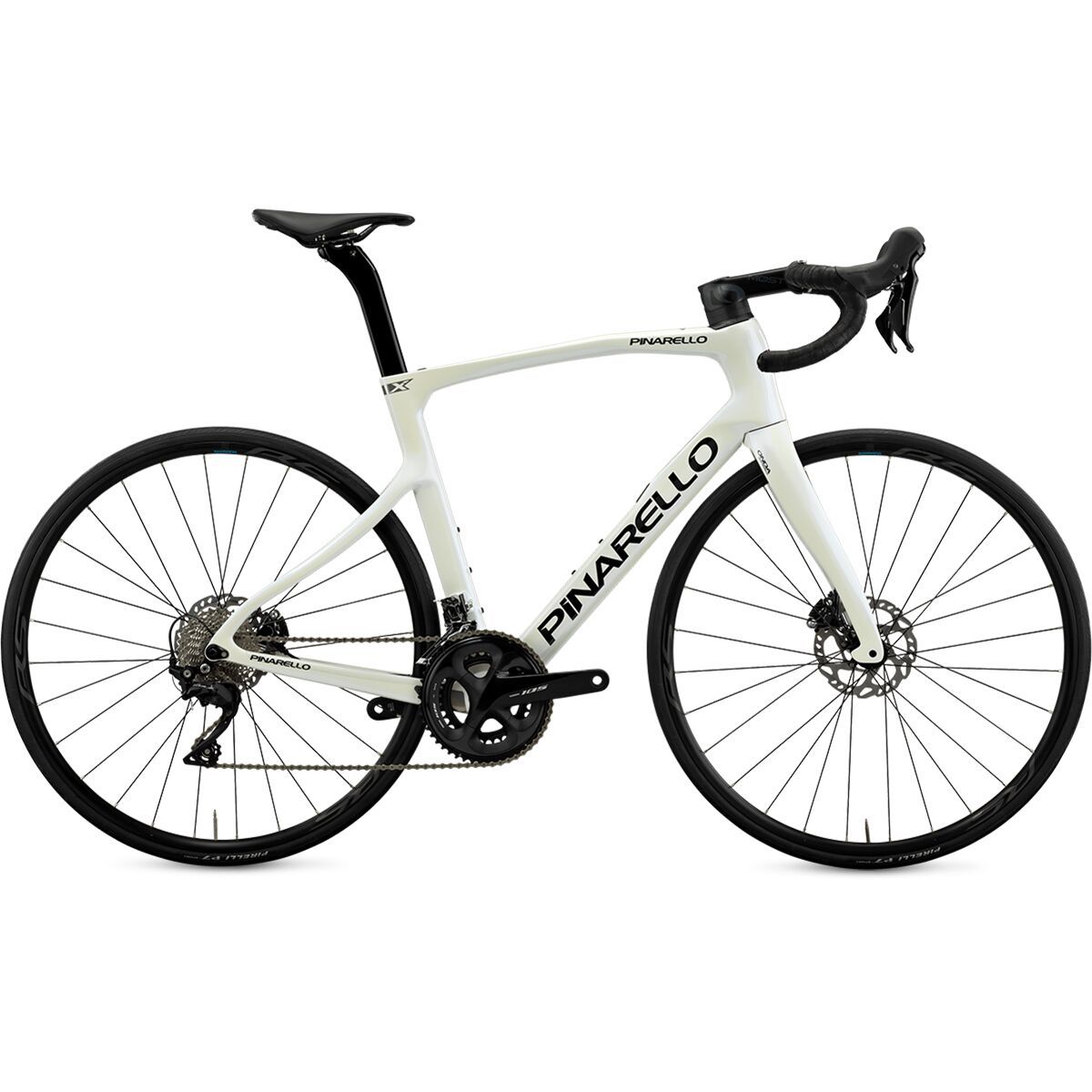

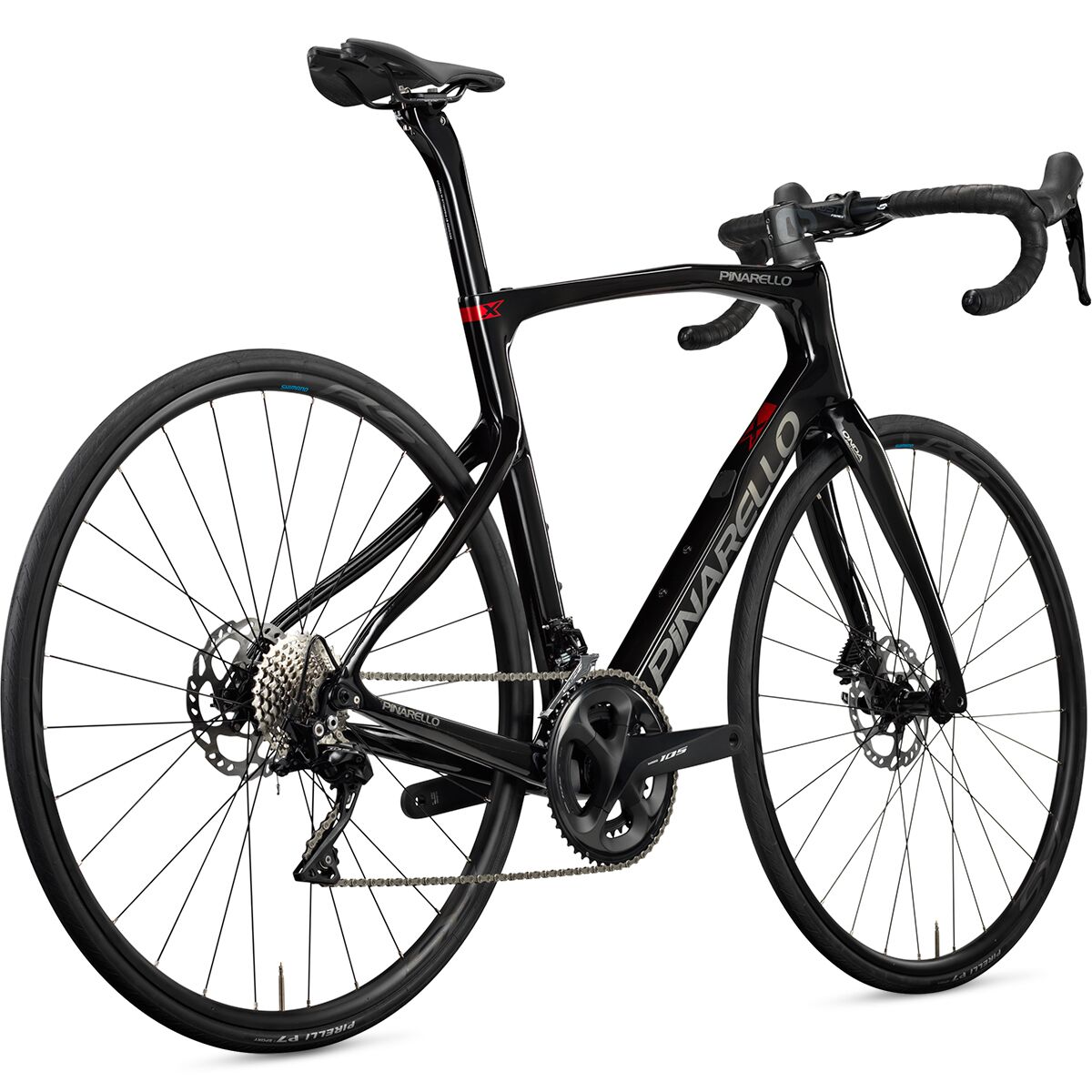

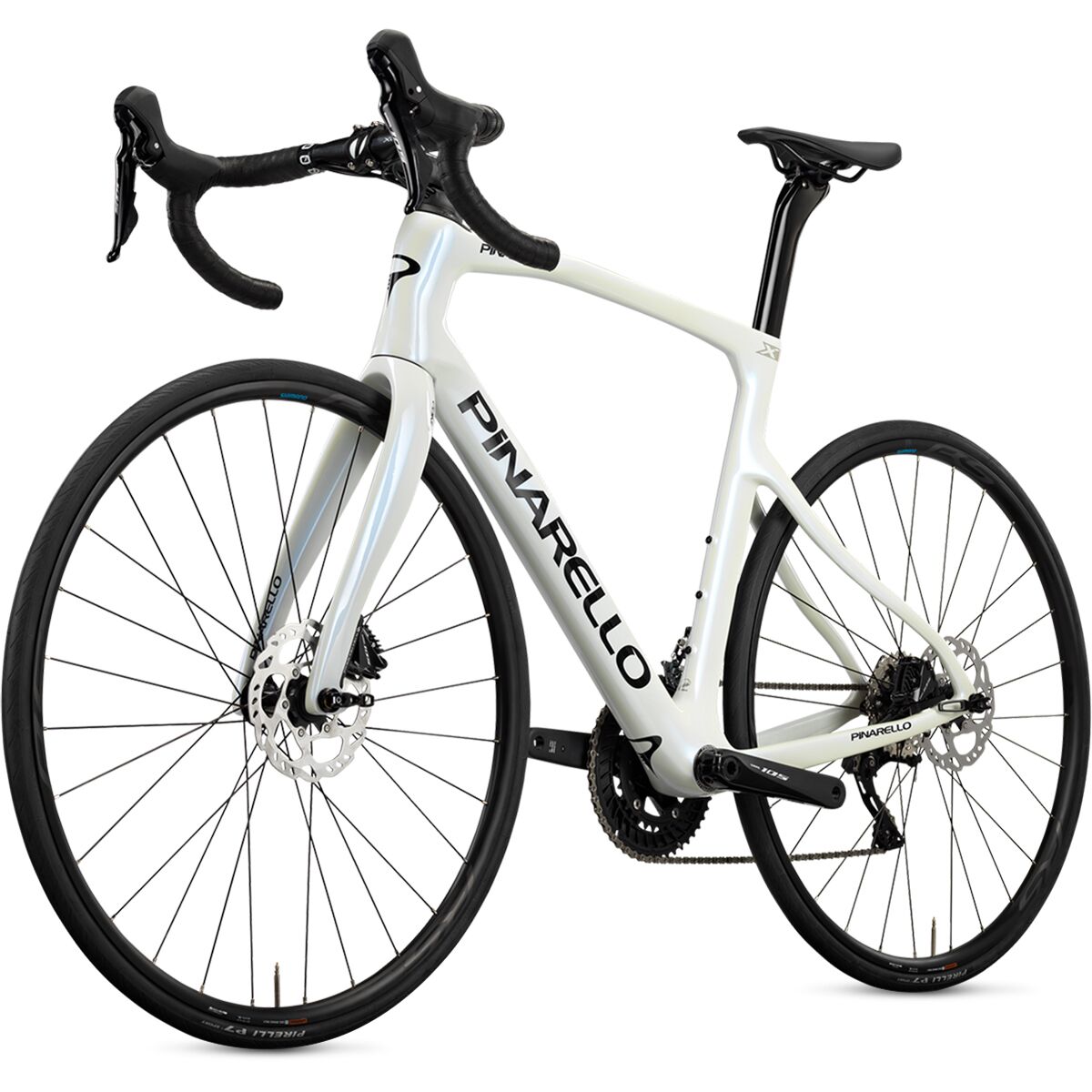

Pinarello X1 105 Road Bike

Why We Like The Pinarello X1 105 Road Bike

Built to keep us riding at full speed without sacrificing comfort, the Pinarello X1 105 Road Bike features unique geometry and high-quality materials to keep us focused on the road ahead. The Endurance+ geometry features a compact reach and a high stack, placing us in a relaxed position in the saddle with our hands comfortably on the Jaguar XA Aero TiCR handlebars. With the TorayCa T600 UD carbon fiber layup and added flex stays, vibrations are dampened to keep us riding with minimal fatigue for hours on end. Meanwhile, the X Onda fork gives us the precise turning and stability needed to conquer anything that comes our way.

For riders not quite ready to switch to an electronic drivetrain, the Pinarello X1 is specified with the Shimano 105 drivetrain, a classic mechanical shifting option that keeps things simple, and that is how we like it. This 12-speed system features a 50/34t crankset and a cassette range of 11-36t that combine to provide us with the gearing we need for any climb, descent, or flat sprint, while the enhanced braking control of the disc brake system allows us to push past our limits and ride at speeds we never thought possible.

Heads up - We do our best to keep bike specs and images current, but occasional component changes can happen without warning-and sometimes the photos might not show the exact build you´ll receive. If you want to double-check the details, our Gearheads are always here to help.

Details

• Hit the road for hours of enjoyable riding with this high-performance bike
• Built with TorayCa T600 UD carbon fiber for a lightweight, comfortable ride
• Spec’d with the Shimano 105 drivetrain for classic mechanical shifting
• The 11-36t cassette and 50/34t chainrings provide optimal gearing ratios
• Precise turning, stability, and shock reduction provided by the Onda fork
• The asymmetric frame design balances the forces of each pedal stroke
• Flex stays help absorb vibrations without reducing rear triangle responsiveness
• Item #PINI06J

Tech Specs

Frame Material

TorayCa T600 UD carbon

Fork

X Onda fork with forkflap, tapered head tube

Shifters

105 ST-R7120, 12-speed

Front Derailleur

105 FD-R7100, 12-speed

Rear Derailleur

Shimano 105

Crankset

FC-R7100

Chainring Sizes

50/34T

Crank Arm Length

[43cm, 46.5cm, 50cm, 51.5cm] 170mm, [53cm, 54cm, 55cm 56cm] 172.5mm, [57.5cm, 59.5cm, 62cm] 175mm

Bottom Bracket

Italian

Cassette

CS-R7100

Cassette Range

11-36T

Chain

CN-M6100

Brakeset

Shimano 105 2 pistons

Brake Type

disc

Rotors

160mm

Handlebar

Jaguar XA Aero TiCR

Handlebar Width

[43cm, 46.5cm, 50cm, 51.5cm] 420mm, [53cm, 54cm, 55cm] 440mm, [56cm, 57.5cm, 59.5cm 62cm] 460mm

Bar Tape

MOST Ultragrip Evo 3mm - Black

Stem

MOST Tiger Alu TiCR

Stem Length

[43cm] 80mm, [46.5cm, 50cm] 90mm, [51.5cm, 53cm, 54cm, 55cm] 100mm, [56cm, 57.5cm, 59.5cm] 110mm, [62cm] 120mm

Saddle

Most Lynx Aircross

Seatpost

Carbon Aero Seat Post

Wheelset

Shimano WH-RS171

Front Axle

12 x 100mm

Rear Axle

12 x 142mm

Tire Clearance

32mm

Tires

Pirelli P7

Tire Size

700 x 32mm

Pedals

not included

Manufacturer Warranty

[without registration] limited 2 year, [with registration] limited 5 year

Activity

road cycling
