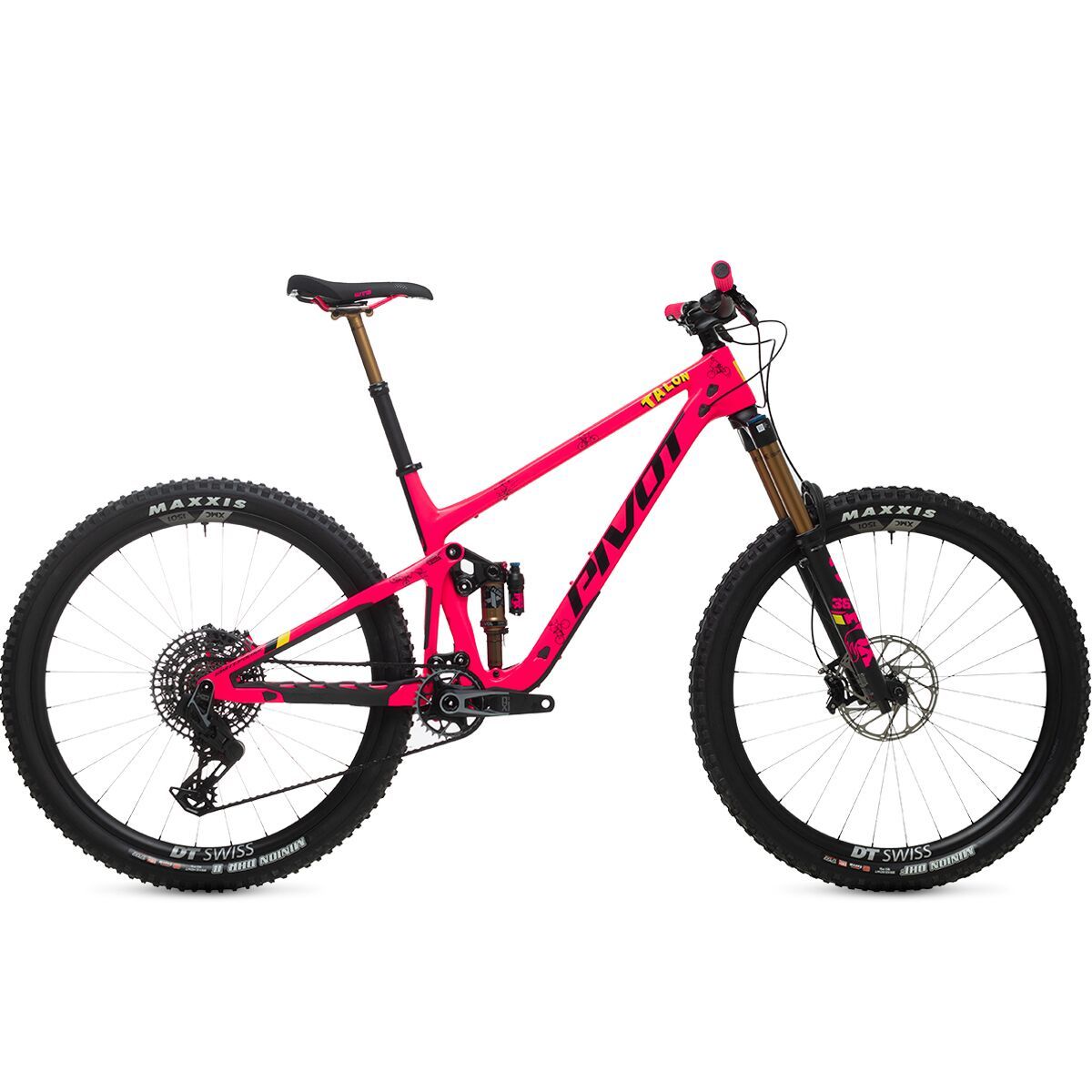

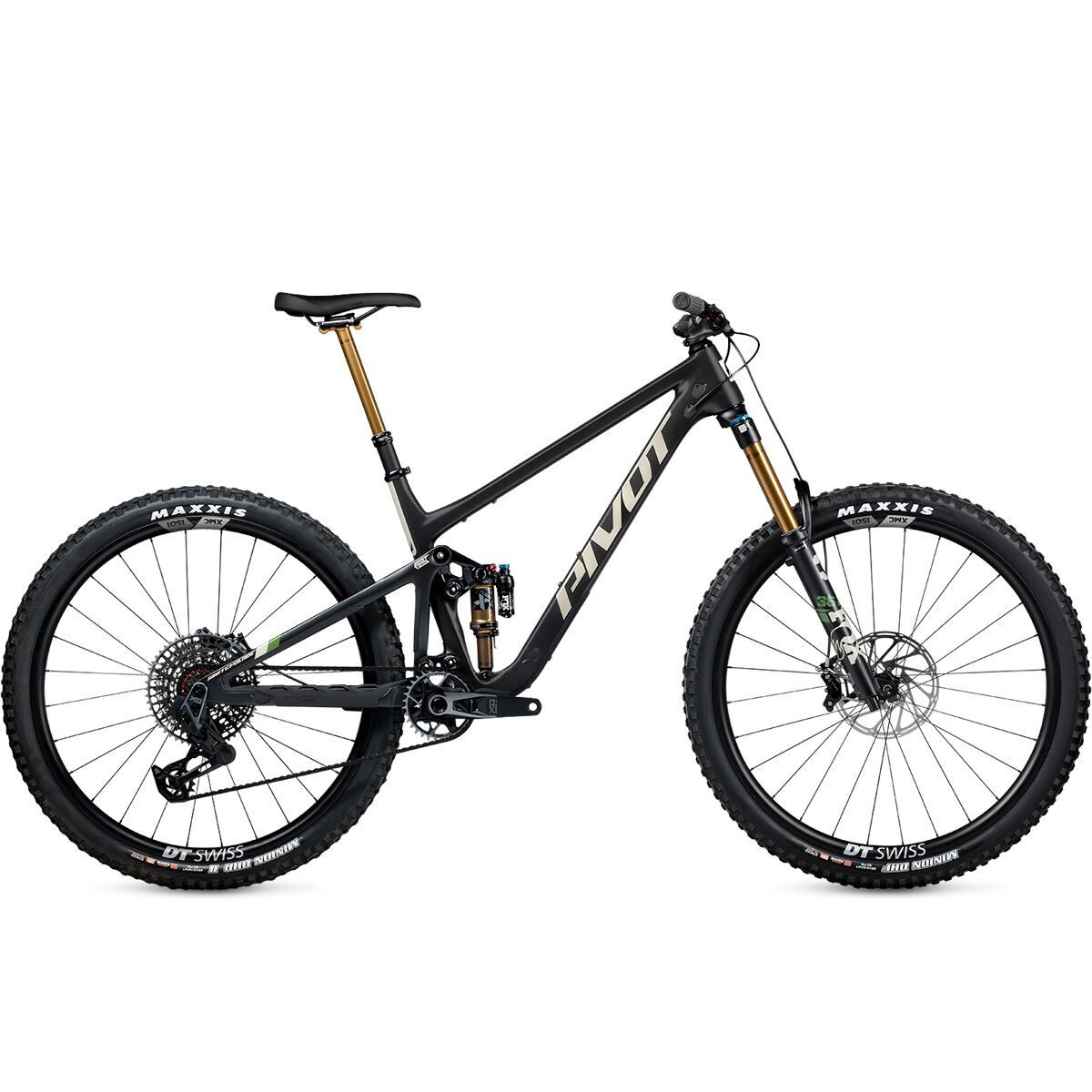

Pivot Switchblade Pro X0 Transmission Carbon Wheel Mountain Bike

Why We Like The Pivot Switchblade Pro X0 Transmission Carbon Wheel Mountain Bike

From light enduro riding to aggressive trail riding, the Switchblade was designed to do it all and is a nimble and versatile mid-travel 29er that has an insatiable desire for flow trails and technical singletrack. The 142mm of travel backed by the renowned DW-Link suspension system, dual 29-inch wheels, and a lightweight carbon frame make for a bike that is exceptionally capable and is our weapon of choice for technical singletrack. The Switchblade´s modest geometry lands in that golden zone that is still perfectly capable of sending it off drops and down steep chutes as it is cruising on the singletrack and fire roads, and the climbing characteristics are second to none with an efficient 76-degree seat tube angle to put us in that perfectly centered position for climbing. Additional features on the Switchblade include a flip chip that allows us to slacken out the head tube angle and drop the bottom bracket height for extra control on steep terrain and fast speeds. Integrated downtube and chainstay protectors protect our frame from rocks and chain slaps, while the front triangle can accommodate two water bottle cages to keep us hydrated.

The Pro X0 transmission Carbon Wheel build of the Pivot Switchblade features high-level components, an upgraded wheelset, and an electronic drivetrain to take our performance to the next level. First up, Pivot´s lightweight carbon fiber frame uses premium materials to give us the lightest and most durable frame possible. Next, the Fox Factory Float X rear shock keeps us under control in the rear and comes with a 2-position compression switch, which we can use to set up the shock for more efficient climbing. The Fox Factory Float 36, 160mm fork, handles the big hits up front and has tons of compression and rebound adjustments so we can tune our fork to our riding style. Top-of-the-line DT Swiss XMC1501 carbon rims absorb vibration and stiffen up our ride while dropping the weight for enhanced performance, and DT Swiss 240 hubs give us premium performance. To wrap it all together, the Switchblade is fitted with Maxxis DHF and DHRII tires to give us the traction and grip we need for aggressive riding.

*Due to a high demand in the global supply chain and bike industry since the start of the pandemic, material weight and exact components are subject to change. We are working diligently to keep tech specs updated, and any adjustments will be of equal or better spec level. If you have any questions, reach out to a Gearhead by chatting online or calling 1-888-276-7130.

Heads up - We do our best to keep bike specs and images current, but occasional component changes can happen without warning-and sometimes the photos might not show the exact build you´ll receive. If you want to double-check the details, our Gearheads are always here to help.

Details

• Mid-travel trail/enduro bike with versatility for nearly any trail
• 142mm of DW-Link suspension excels on most trails
• Pivots carbon fiber frames are among the lightest on the market
• SRAM X0 Transmission drivetrain for precise electronic shifting
• Fox Factory Float X rear shock with 2-position compression switch
• Premium DT Swiss XMC1501 carbon wheels are stiff and lightweight
• Fox Factory Float 36, 160mm fork soaks up the big hits
• Item #PIV1X15

Tech Specs

Frame Material

carbon fiber

Suspension

DW-Link

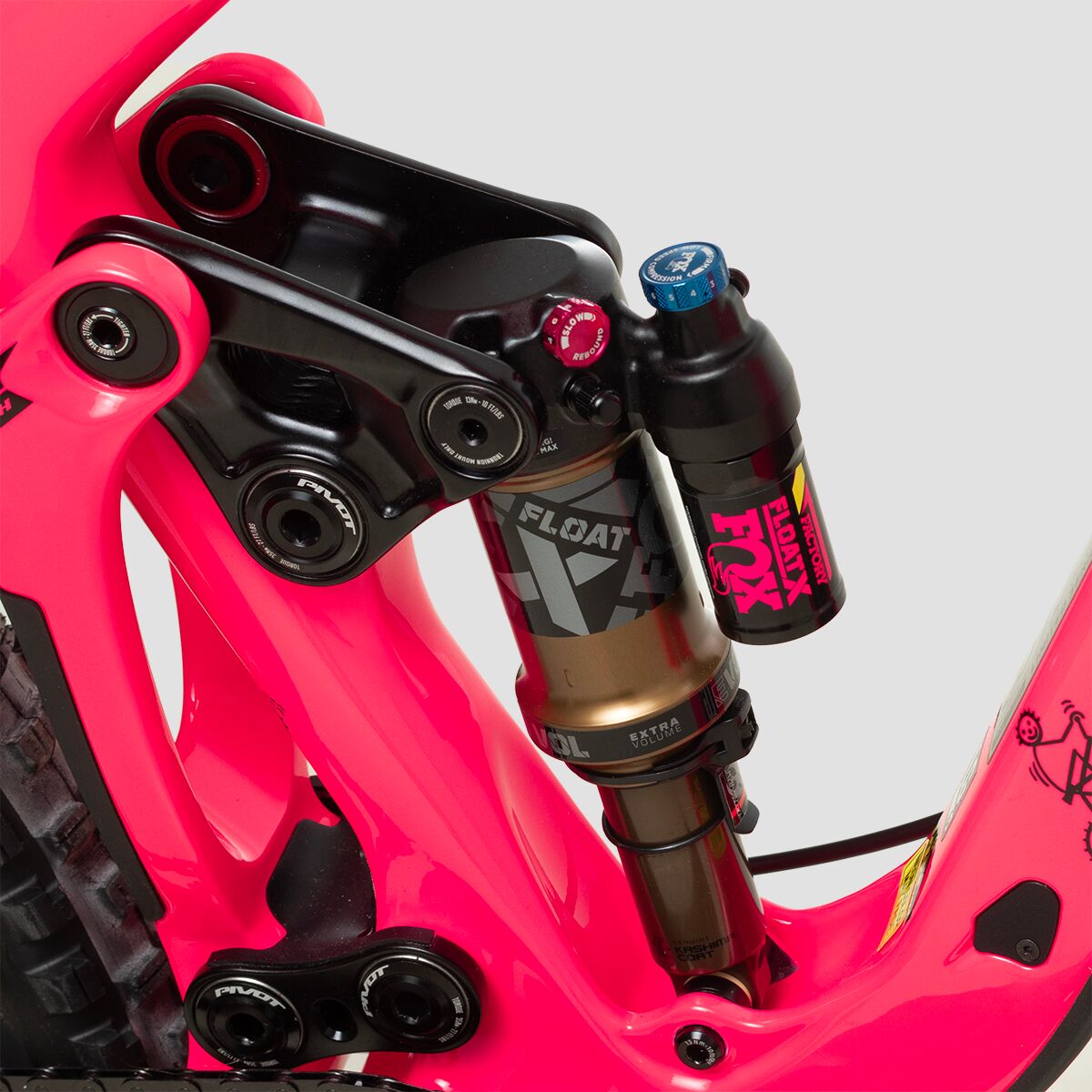

Rear Shock

Fox Factory Float X

Rear Travel

142mm

Fork

Fox Factory 36 29in, 44mm offset, GRIP2

Front Travel

160mm

Headset

Pivot Precision Sealed Cartridge

Shifters

SRAM AXS Pod Controller, 12-speed

Rear Derailleur

SRAM X0 Eagle Transmission, 12-speed

ISCG Tabs

ISCG-05

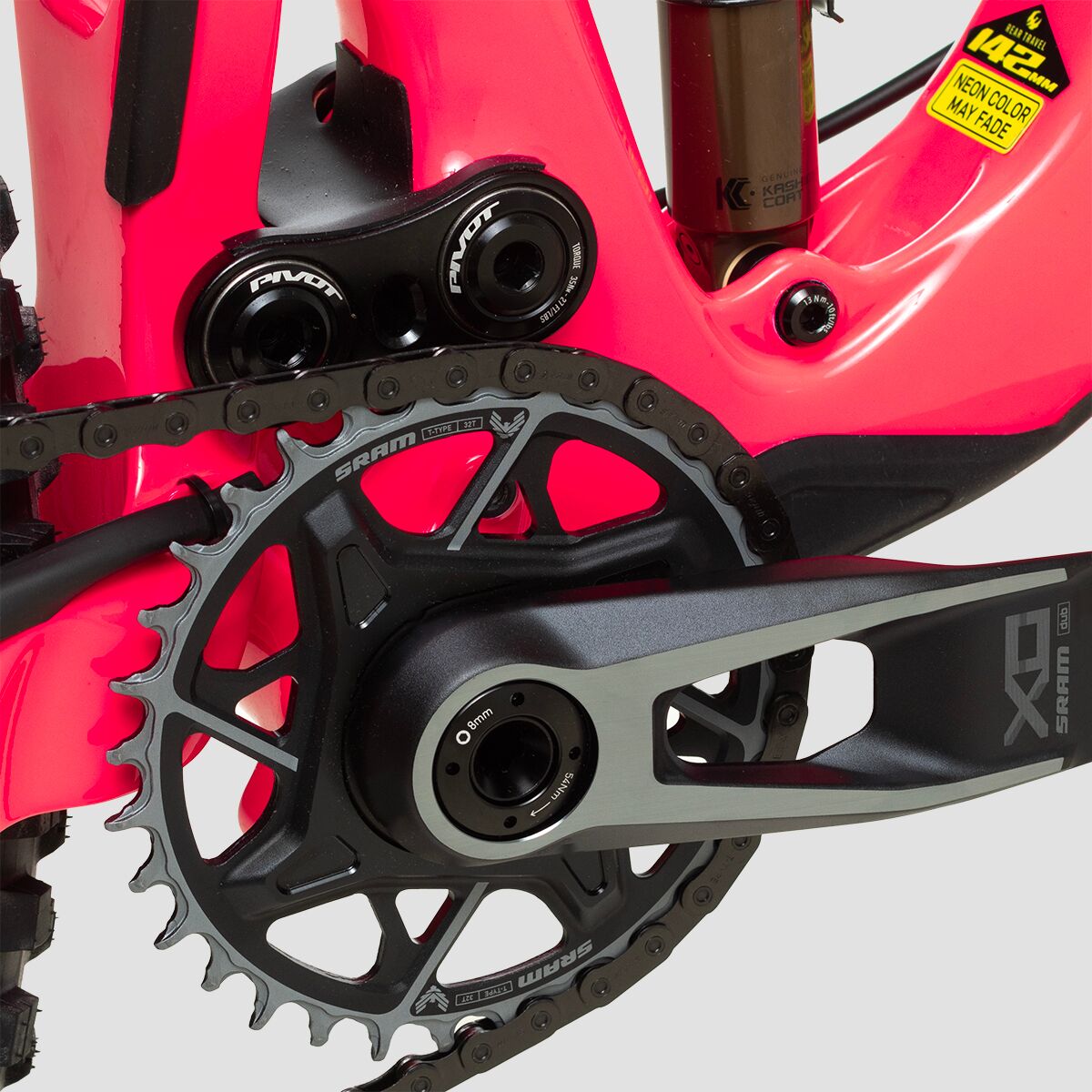

Crankset

SRAM X0 Eagle Transmission, DUB

Chainring Sizes

32t

Crank Arm Length

170mm

Bottom Bracket

SRAM DUB BSA

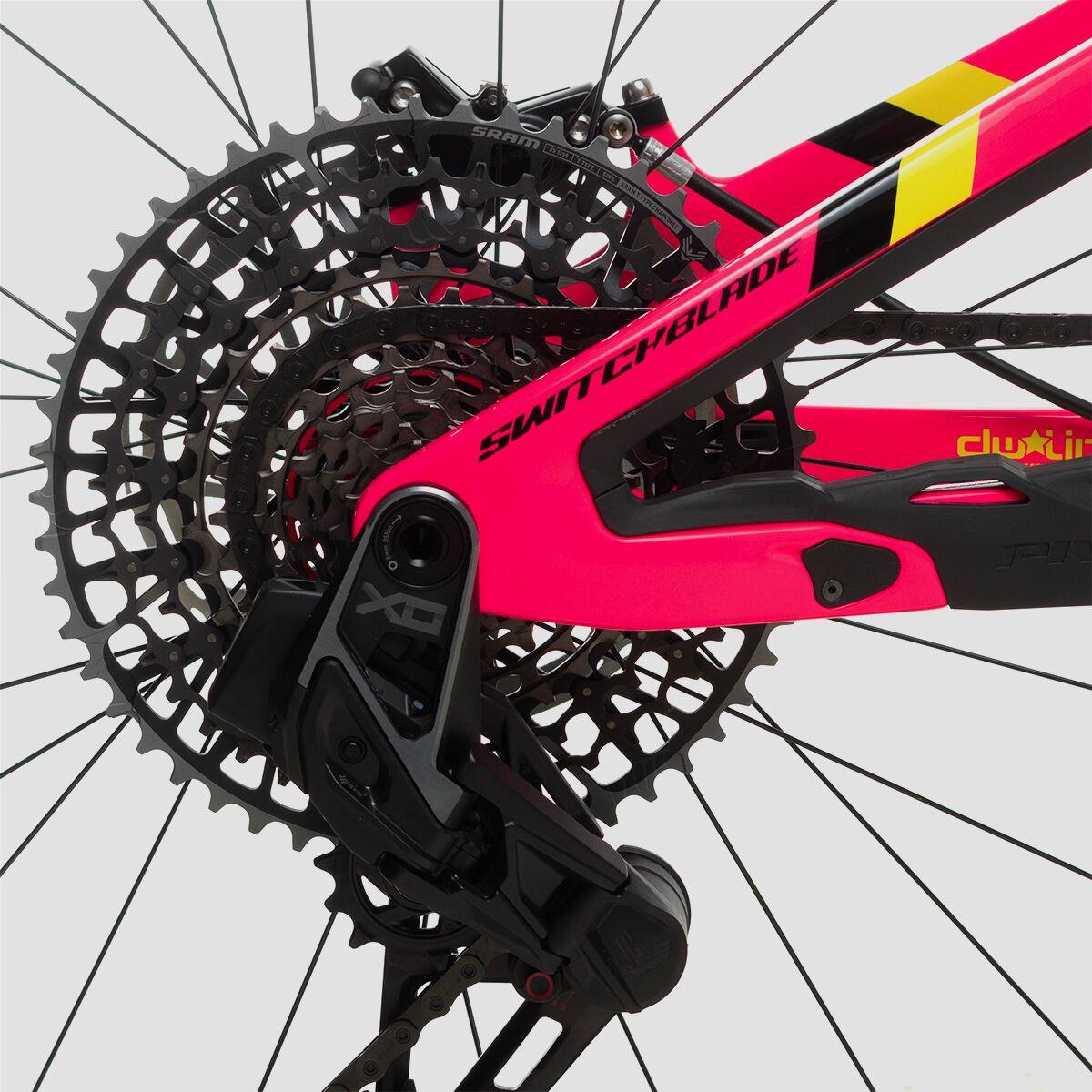

Cassette

SRAM X0 Eagle Transmission, XS-1295, 12-speed

Cassette Range

10-52t

Chain

SRAM X0 Eagle Transmission, 12-speed

Brakeset

SRAM Code RSC

Brake Type

4-piston

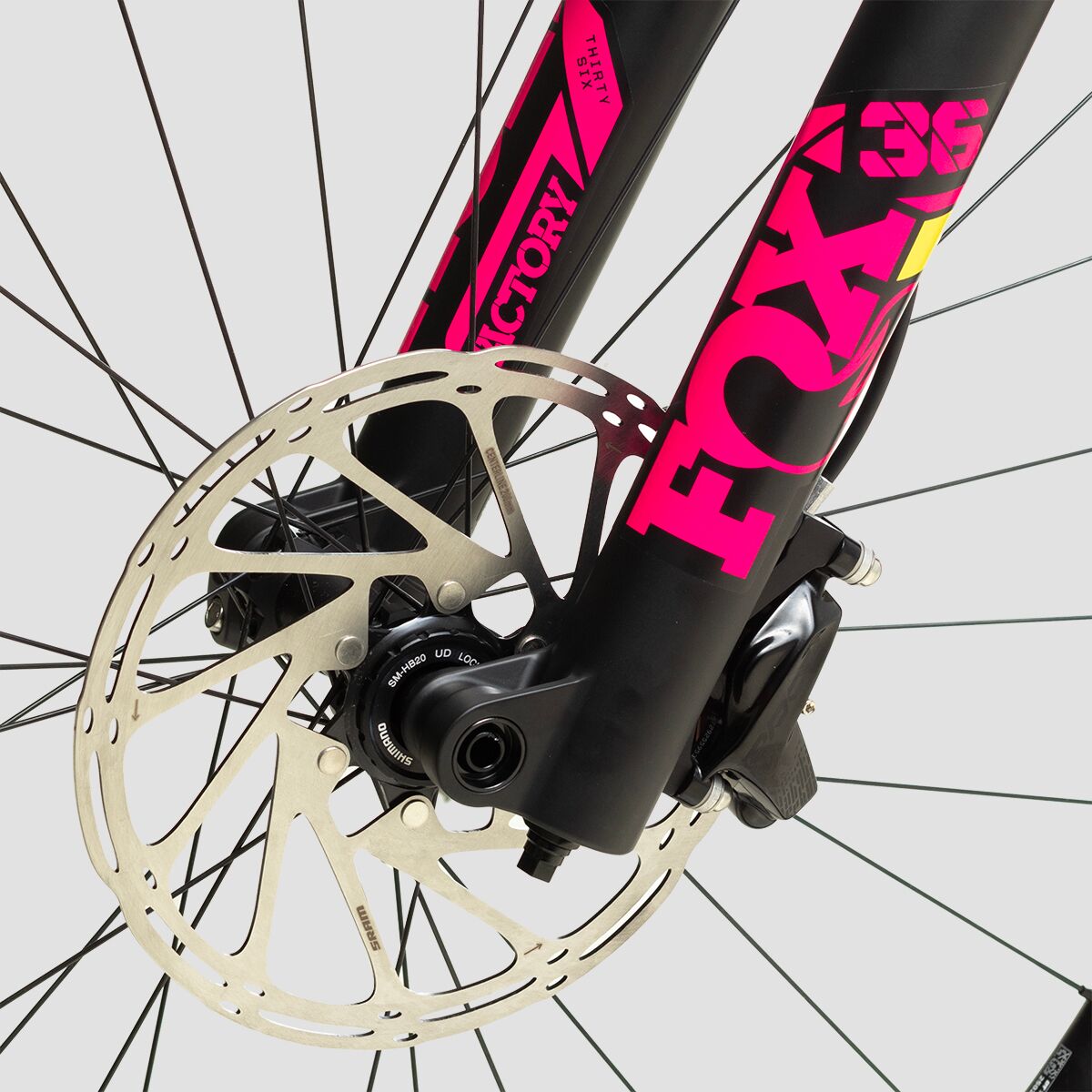

Rotors

[front] SRAM Centerline CL, 200mm, [rear] SRAM Centerline CL, 180mm

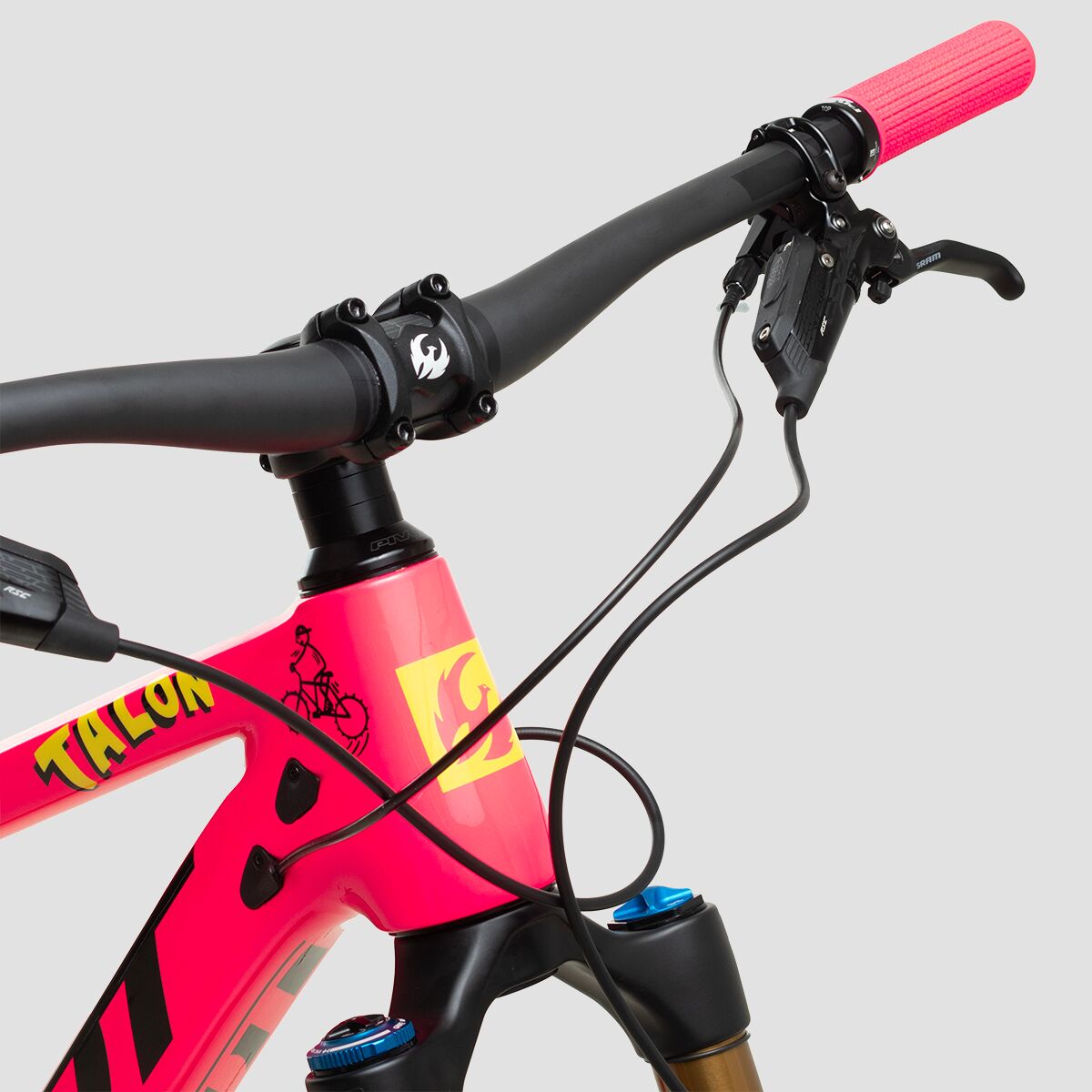

Handlebar

[x-small, small, medium, large] Phoenix Team, low-rise, carbon, [x-large] One Up, low-rise, carbon

Handlebar Rise

low rise

Handlebar Width

[x-small] 760mm, [small, medium, large] 780mm, [x-large] 800mm

Grips

Phoenix Factory Lock-On

Stem

Phoenix Team Enduro/Trail

Stem Length

[x-small] 35mm, [small, medium, large, x-large] 45mm

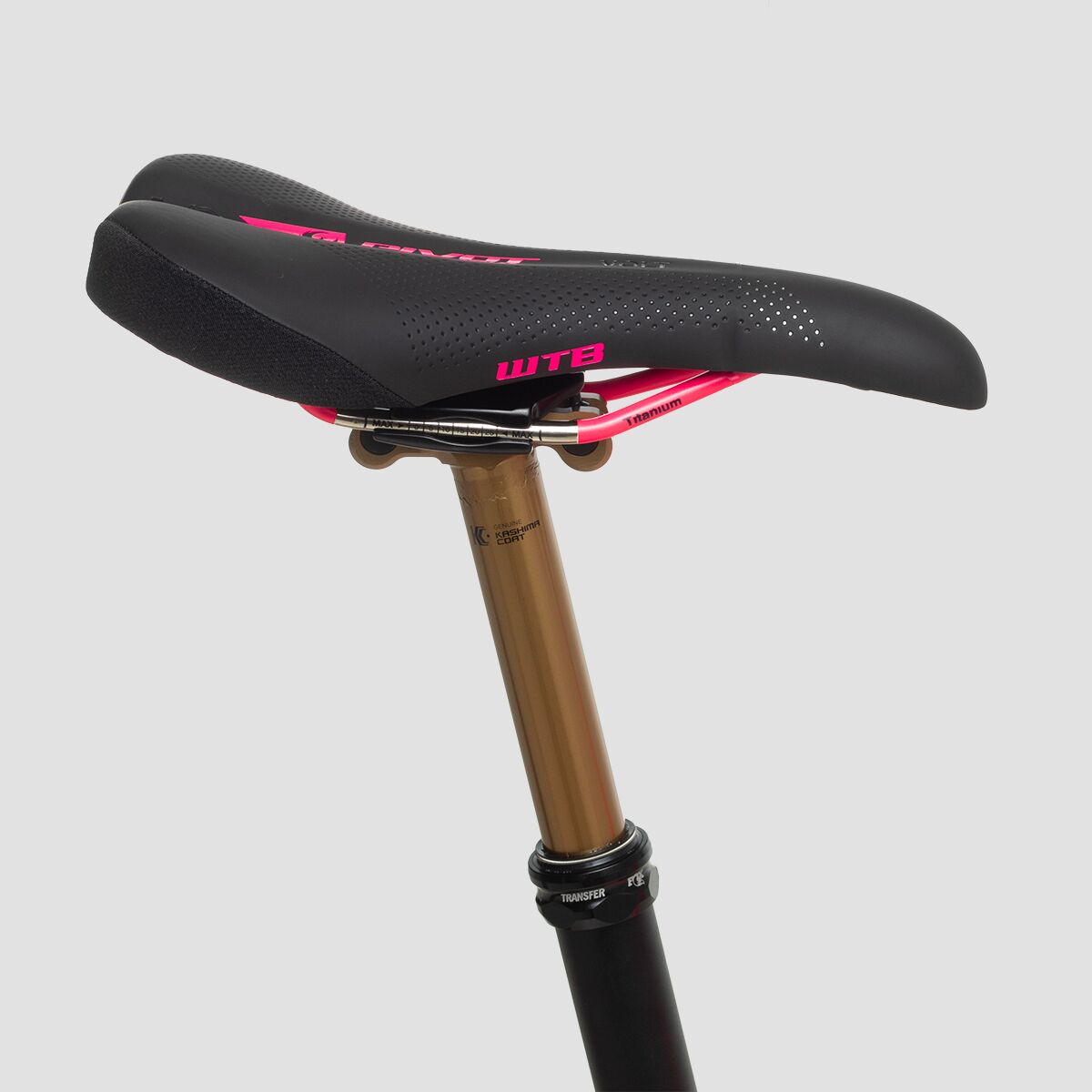

Saddle

[x-small, small] Phoenix WTB Pro High Tail Trail, [medium, large, x-large] Phoenix WTB Volt Pro (Medium Width)

Seatpost

[x-small, small, medium, large] Fox Transfer Performance Elite, [x-large] Fox Factory Transfer

Seatpost Travel

[x-small] 125mm, [small] 150mm, [medium, large] 175mm, [x-large] 200mm

Wheelset

[front, rear] DT Swiss XMC1501, carbon fiber, 29in

Hubs

[front] DT Swiss 240 hub, [rear] DT Swiss 240 hub EXP 36t star ratchet

Front Axle

15 x 110mm Boost

Rear Axle

12 x 148mm Boost

Tire Clearance

[rear] 2.5in

Tires

[front] Maxxis Minion DHF WT, TR, 3C, EXO+, MAXXTERRA, [rear] Maxxis Minion DHRII 29 x 2.4in WT, TR, 3C, EXO+, MAXXTERRA

Tire Size

[front] 29 x 2.5in, [rear] 29 x 2.4in

Pedals

not included

Extras

downtube protector, chainstay protector, SRAM UDH compatible, Flip Chip, Tool Dock, 1 water bottle mount, internally cable routing

Claimed Weight

[frame] 5.7lb

Activity

trail

Manufacturer Warranty

[frames, linkage bearings] lifetime (bike must be registered no later than 30 days after date of purchase or by April 1, 2025, whichever is later), [paint, coating, finish, decals] limited 1-year, [Phoenix-branded components] limited 5-year
