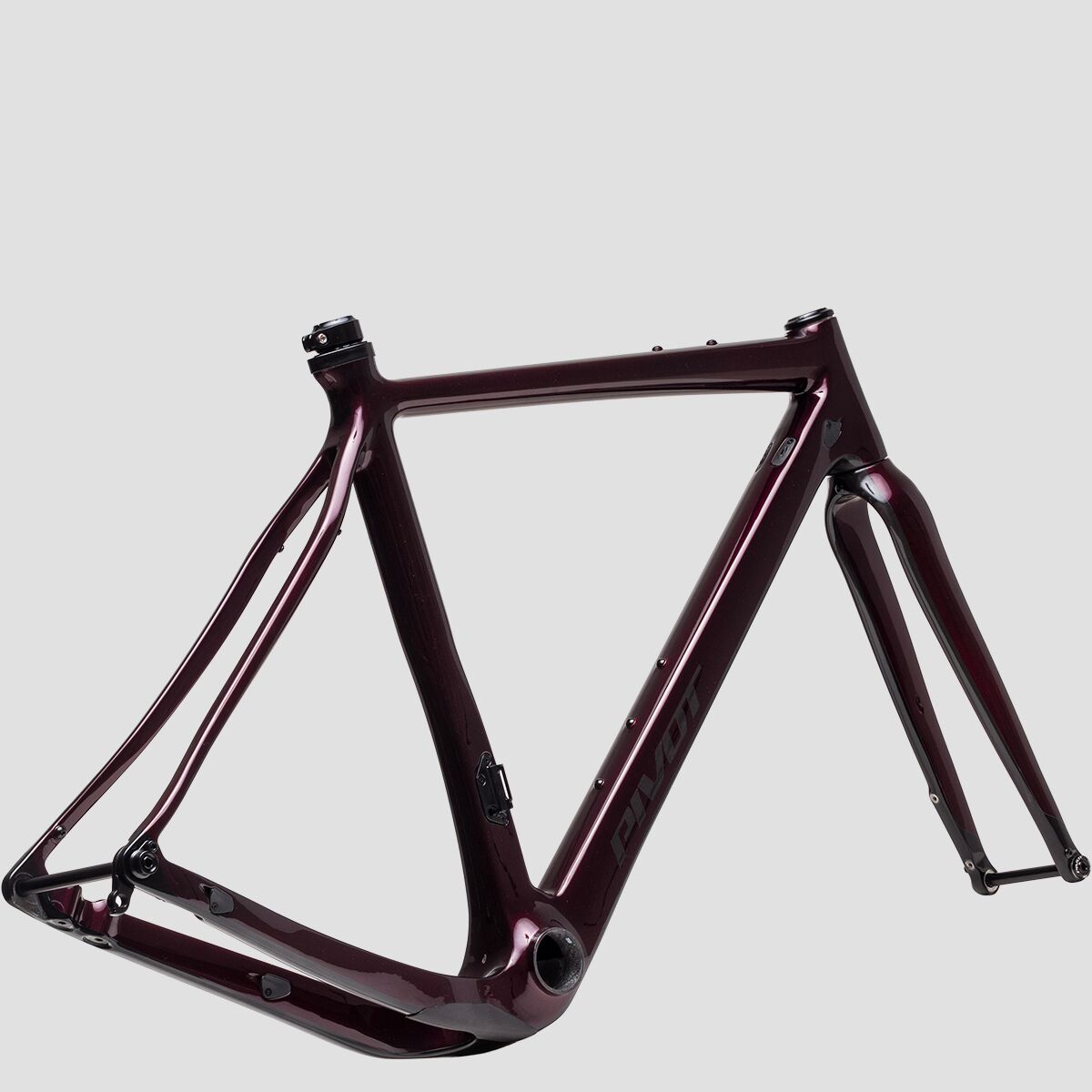

Pivot Vault Frameset

Why We Like The Pivot Vault Frameset

Built for all-day adventures on any terrain, the Vault Frameset features a next-generation road, gravel, and cyclocross geometry. This high-performance, full carbon frame uses an optimized layup structure with stay shaping to provide you with a comfortable ride with superior power output. The stiffness-to-weight ratio of the Vault is superior thanks to its proprietary hollow core internal molding technology and Pivot´s patent-pending ISO FLEX technology. By isolating the seatpost from the frame, the overall comfort level is increased without sacrificing control and stability. To provide a sleek appearance, the Vault features internal cable routing and hidden fender mounts, creating a frameset that is easy for you to service and clean up after a messy trail day.

From the frame itself all the way to the small integrated details, the Vault offers a smooth off-road ride unlike any other on any surface thanks to its generous tire clearance and compatibility with both 1x and 2x drivetrains. By using a BB386EVO bottom bracket, strength and power transfer are optimized and rear tire clearance is increased. With this setup, Pivot allows you to choose your adventure with the use of sub-compact chainrings, traditional road gearing, or 1x systems that provide enough clearance for crank arm power meters.

Heads up - We do our best to keep bike specs and images current, but occasional component changes can happen without warning-and sometimes the photos might not show the exact build you´ll receive. If you want to double-check the details, our Gearheads are always here to help.

Details

• Gravel frameset for off-road adventures and cyclocross riding
• Built with next-gen road/gravel/cross geometry for any terrain
• Full carbon frame provides high stiffness to weight ratio
• Optimized layup structure increases power output on long rides
• ISO FLEX seat post technology ensures all-day comfort and control

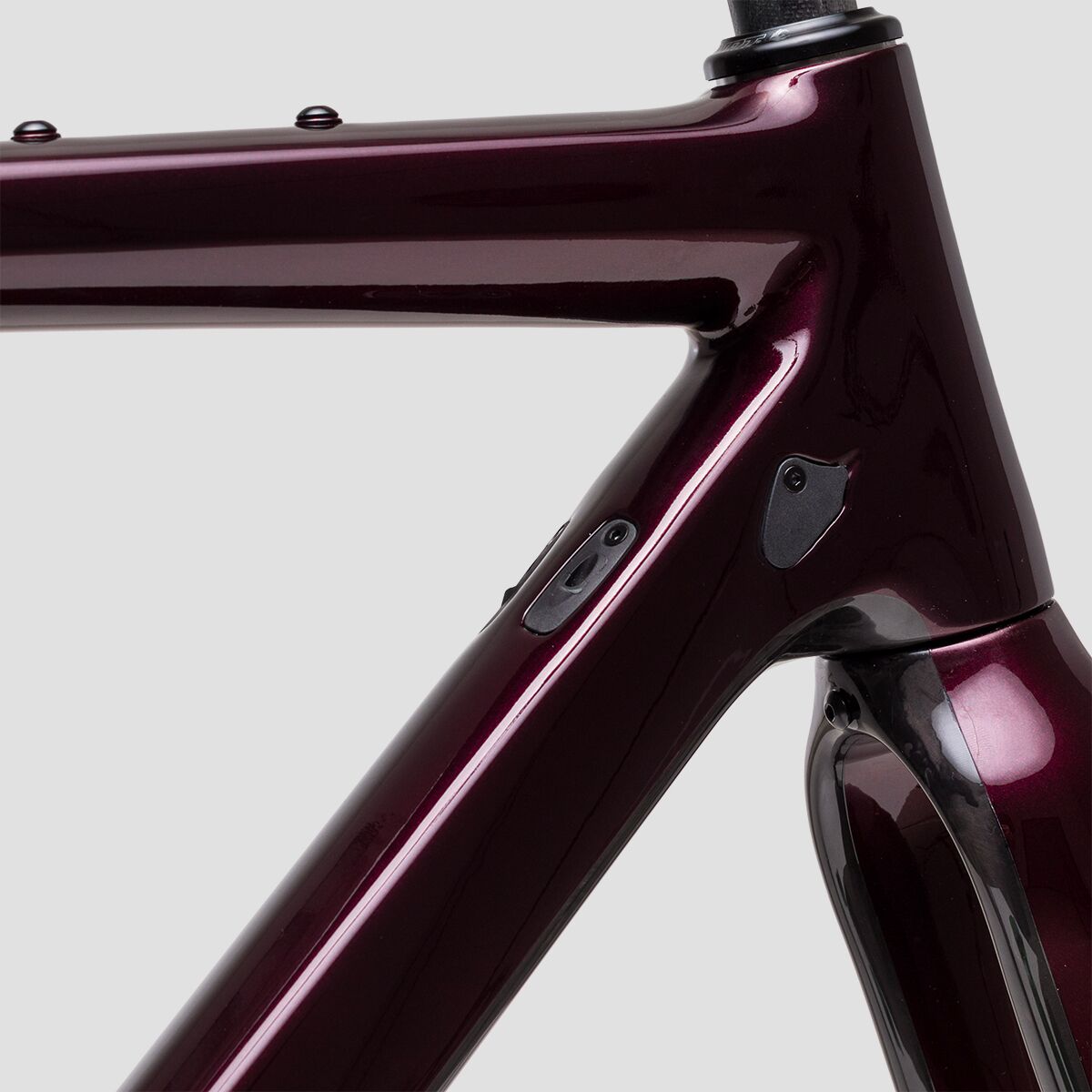

• Internal cable routing, hidden fender mounts offer sleek appearance
• Generous tire clearance fits up to 700 x 47c and 650b x 2in tires
• Top tube mounts allow for gear storage on long adventures
• Item #PIV1WZW

Tech Specs

Frame Material

carbon

Wheel Size

650b, 700c

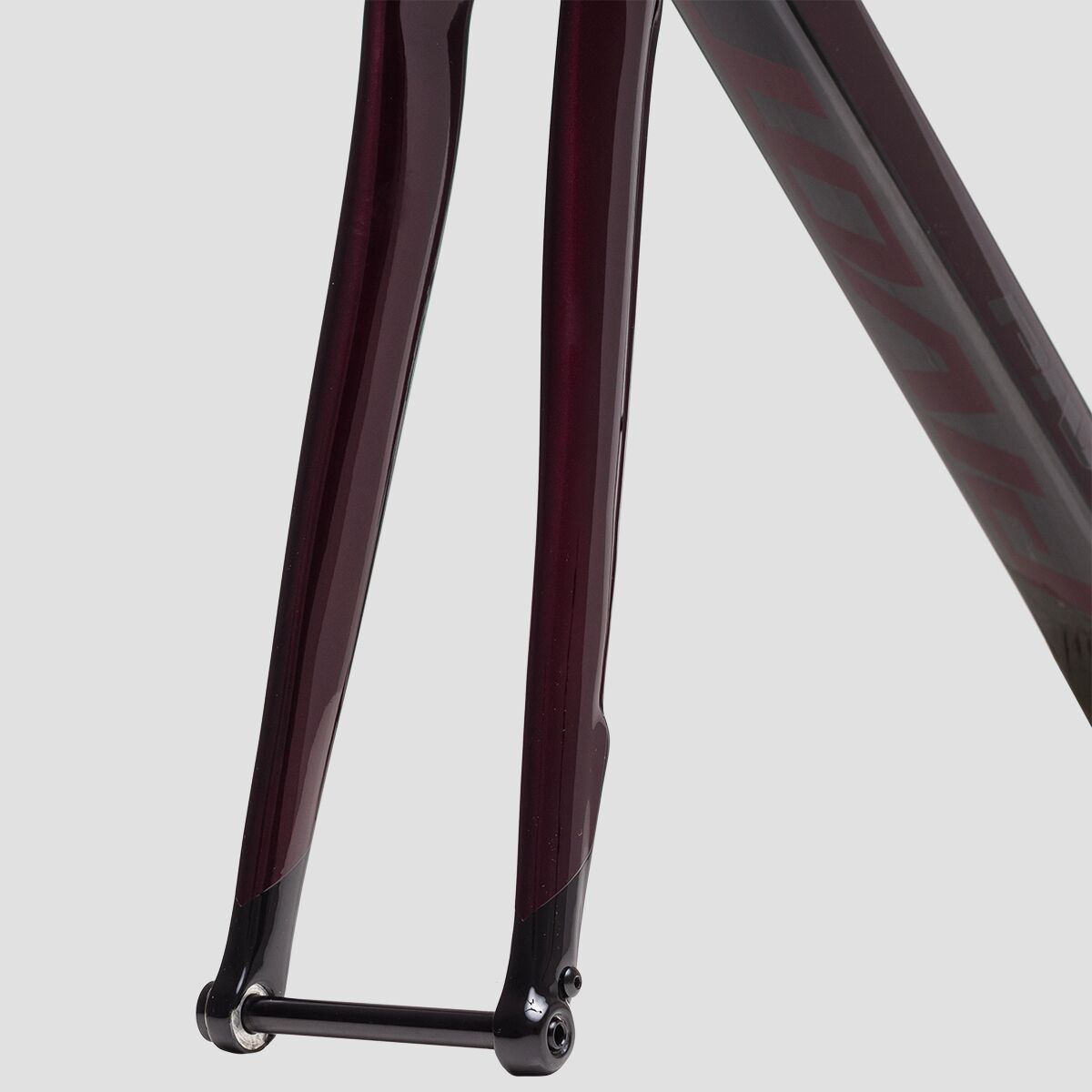

Fork

Pivot Vault carbon

Headset Included

Pivot Precision Sealed Cartridge

Bottom Bracket Type

BB386 EVO

Cable Routing

internal

Front Derailleur Mount

removable braze-on

Brake Type

centerlock disc

Compatible Components

electronic, mechanical drivetrains

Seatpost Diameter

27.2mm or 30.9mm

Seat Collar

ISO Flex technology

Front Axle

12 x 100mm

Rear Axle

12 x 142mm

Tire Clearance

700 x 47C and 650b x 2in

Claimed Weight

[medium] 2lb 3.2oz (998g)

Activity

gravel, cyclocross

Manufacturer Warranty

[frames, linkage bearings] lifetime (bike must be registered no later than 30 days after date of purchase or by April 1, 2025, whichever is later), [paint, coating, finish, decals] limited 1-year, [Phoenix-branded components] limited 5-year
