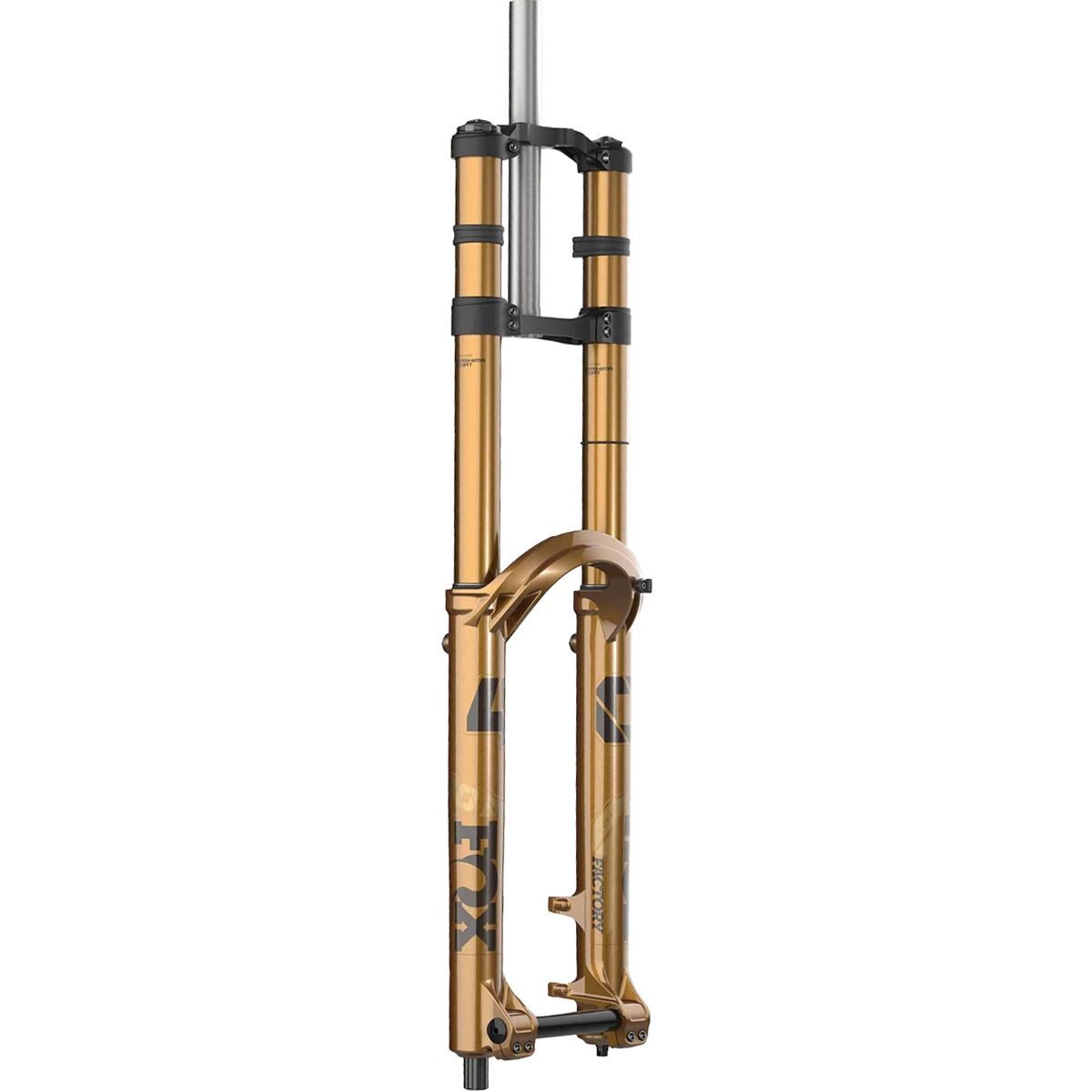

FOX Racing Shox 40 Float 29in Factory Grip X2 Fork - Limited Edition Gold

Why We Like The Fox 40 Float 29in Factory Grip X2 Fork

For Fox´s 50th anniversary release, they dropped on us a very limited number of their 2025 forks sporting the new flashy Podium Gold colorway. The Fox 40 Float 29in Factory Grip X2 Fork is one of our go-to forks for heavy-duty downhill performance and has burly 40mm stanchions, a dual crown, and a 20mm axle for downhill-ready strength and stiffness. This year, Fox revised its top-tier Grip2 damper and returned with the Grip X2. All of the compression and rebound adjustments mostly stay the same, but the Grip X2 now has a slightly wider compression range and features a larger diameter base valve with a higher count valve stack for better sensitivity and tuning range. This all helps to keep us planted through high-speed berms while riding higher in our travel for unprecedented downhill-focused performance. Various features returning from the last model year include the floating axle for a smoother ride, the revised arch for stiffness and weight savings, and the bleeders for balanced positive and negative air chambers.

Details

• Premium downhill fork for racing or bike park use
• Podium Gold limited-edition colorway compliments any bike
• Grip X2 damper high/low compression and rebound and more sensitivity
• FLOAT EVOL air spring offers extra mid-stroke support and tunable bottom-out
• 20 x 110mm Boost axle for downhill strength and stiffness
• Larger diameter base valve lowers pressures for extra sensitivity
• Triple the valve stack count for enhanced tunability
• Item #FRSC0AF

Tech Specs

Travel

203mm

Stanchion Material

aluminum, Kashima coating

Lower Material

magnesium

Crown Material

aluminum

Wheel Size

29in

Steer Tube Diameter

1 1/8in straight

Stanchion Diameter

40mm

Rake

52mm

Spring Type

air, FLOAT EVOL

Damper

Grip X2

Adjustability

low/high-speed compression, low/high-speed rebound

Axle

20 x 110mm Boost

Brake Compatibility

Post Mount, disc

Rotor Compatibility

min] 203mm, [max] 230mm

Claimed Weight

6lb 0.82oz (2745g)

Activity

downhill
