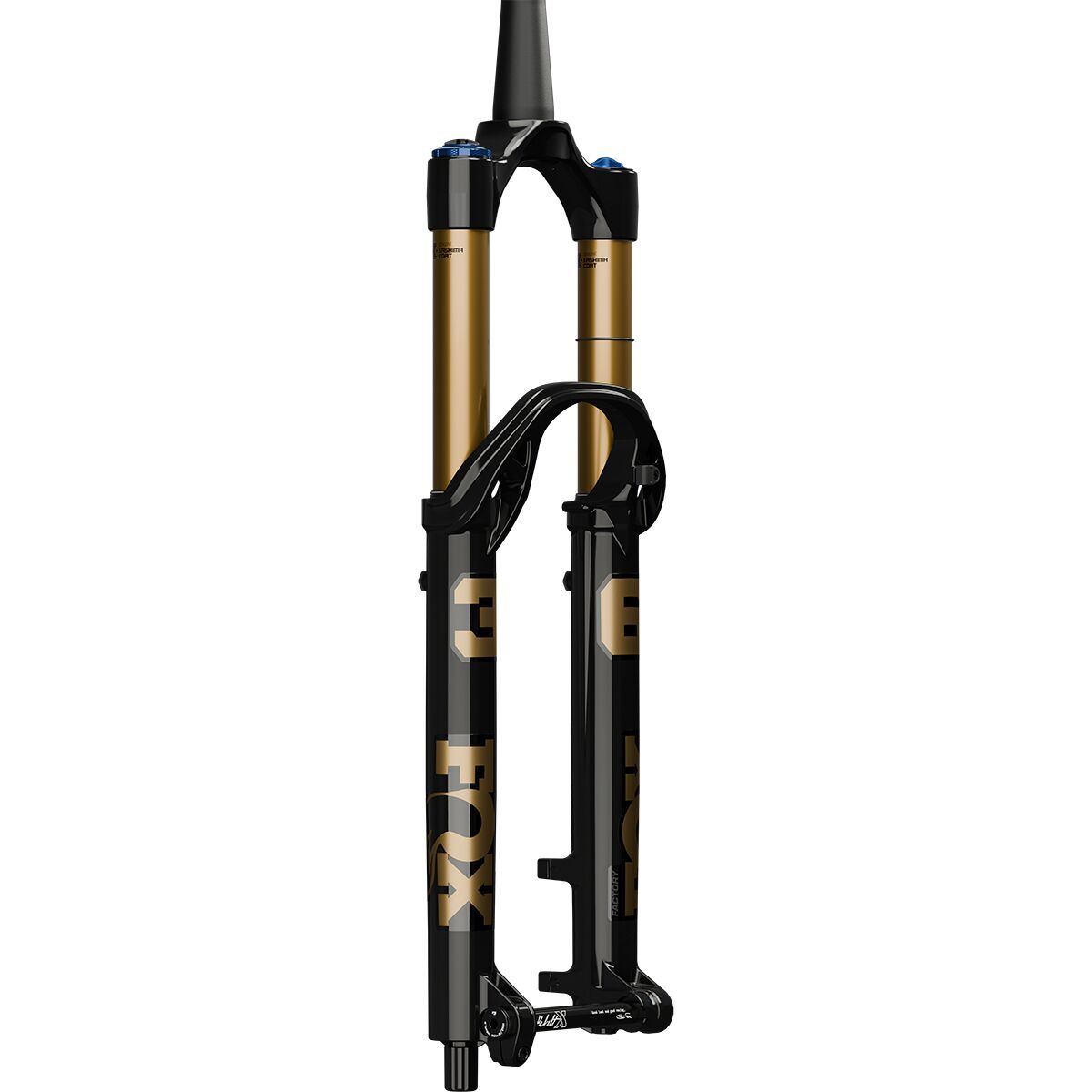

FOX Racing Shox 36 Float 29in E-Optimized Factory Grip X2 Fork

Take powered descents further with the Float 36 29in Factory Grip X2 Fork EMTB

What Our Gearhead® Experts Are Saying:

"I run the 36 e-Optimized with Grip X2 on my long-travel e-MTB and it´s a game-changer. It´s ultra-planted and buttery on the steeps, and that extra traction at speed makes a huge difference with the added weight of the bike."

When your e-MTB demands more from your front end, the Float 36 29in Factory Grip X2 Fork EMTB delivers. Designed specifically for the added torque, speed, and weight of electric-assist trail bikes, this updated chassis combines big-bike stiffness with precision damping control for aggressive lines and hard landings.

Inside, the FOX Glidecore-enhanced FLOAT EVOL spring adapts dynamically under load to reduce friction and improve traction, even when the fork is pushed deep into its travel. A redesigned arch structure increases torsional stiffness by 20%, while extended bushing overlap ensures smoother performance and less binding on off-camber compressions or heavy braking. The GRIP X2 damper is FOX’s most adjustable, descent-focused system, giving riders full control of high- and low-speed rebound and compression for truly gravity-tuned performance.

Add in a floating Kabolt-X axle, Kashima-coated stanchions, and compatibility with up to 230mm rotors, and the 36 EMTB is purpose-built for the bikes and riders who don’t back down from any terrain.

Details

• e-MTB optimized 160mm fork built for aggressive gravity and all-mountain riding
• Grip X2 damper with 4-way adjustability for elite traction and support at speed
• Glidecore-enhanced FLOAT EVOL air spring improves sensitivity under dynamic load
• 20% torsional stiffness increase from generative arch and lower design
• 30mm more bushing overlap reduces chassis friction under lateral stress
• Floating Kabolt-X axle boosts precision and alignment under heavy braking
• Optional 4-point mudguard adds protection without sacrificing aesthetic
• Compatible with 200mm post mount and up to 230mm rotors for max braking power
• Item #FRSC0B2

Tech Specs

Travel

160mm

Stanchion Material

aluminum, Kashima-coated

Lower Material

magnesium

Crown Material

aluminum

Wheel Size

29in

Steer Tube Diameter

1.5in tapered

Stanchion Diameter

36mm

Axle To Crown

576mm

Rake

44mm

Spring Type

FLOAT EVOL air

Damper

GRIP X2

Axle

15 x 110mm

Rotor Compatibility

200mm - 230mm

Claimed Weight

4lb 4oz (1920g)

Activity

downhill, enduro

Manufacturer Part Number

910-21-347
