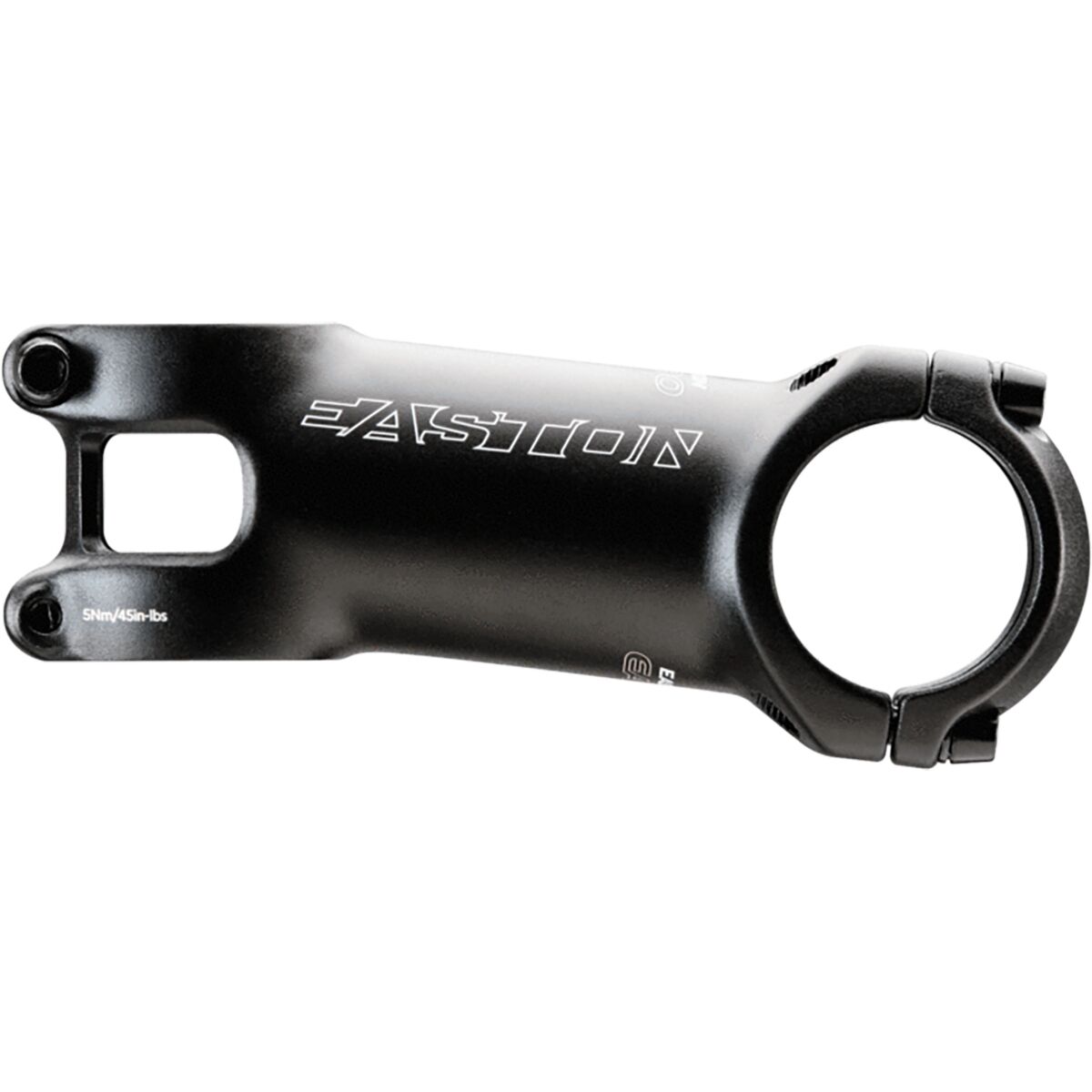

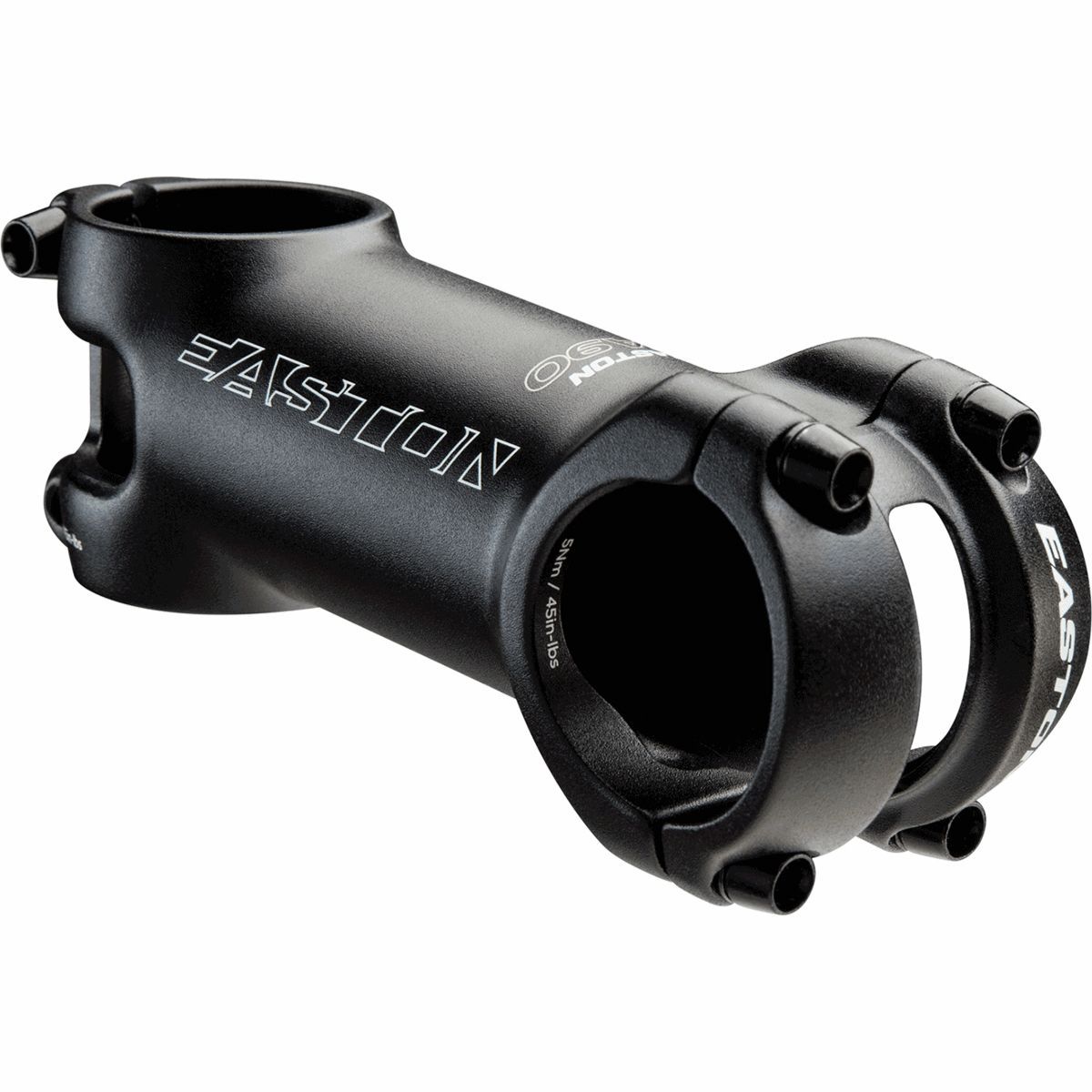

Easton EA90 Stem

EA90 Stem

Stems need to be strong, durable, and light, and it mustn´t crush the handlebar and fork clamped on either end. Easton addresses all of those details with its updated EA90 Stem that´s a larger diameter and finished in a lovely Black anodization that´s sure to look great on any bike. Furthermore, it includes its integrated mount for Garmin computers offering cleaner lines and better aerodynamics.

The most unique feature of the EA90 is the DST technology faceplate. Distributed Stress Technology is simple, but works wonders. It better distributes clamping forces more evenly over a larger area, making it ideal for lightweight aluminum and carbon handlebars. On traditional stems, the clamp itself can create stress at its edges and tightening the bolts increases this. The EA90 has a carefully designed faceplate and stem recess as well as its 4-bolt location so those stresses are better distributed over a wider area to lessen force spikes on the handlebar.

The stem is constructed from aluminum tubing and receives a 3D forging process for the ideal blend of strength and weight. It comes in two different rises, 0 and +/- 7-degrees and the steerer clamp is secured by two opposing bolts to minimize stresses on the steerer tube. It uses a 31.8mm handlebar clamp diameter and is compatible with and 1-1/8-inch steerer tubes. Lengths are available between 70-120mm in 10mm increments.

Details

• A lightweight, strong, and durable stem from Easton
• Forged EA90 aluminum tubing keeps things light and resilient
• Distributed Stress Technology prevents the stem clamp from crushing the bar
• Black ano finish looks good on any bike
• 0 and +/- 7-degree rises available
• Item #EAS002Q

Tech Specs

Material

EA90 Alloy

Length

70, 80, 90, 100, 110, 120mm

Rise

0, +/- 7-degree

Clamp Diameter

31.8mm

Steer Tube Diameter

1-1/8in

Bar Attachment

4-bolt faceplate

Claimed Weight

[100mm] 4.2oz (120g)

Manufacturer Warranty

2 years
