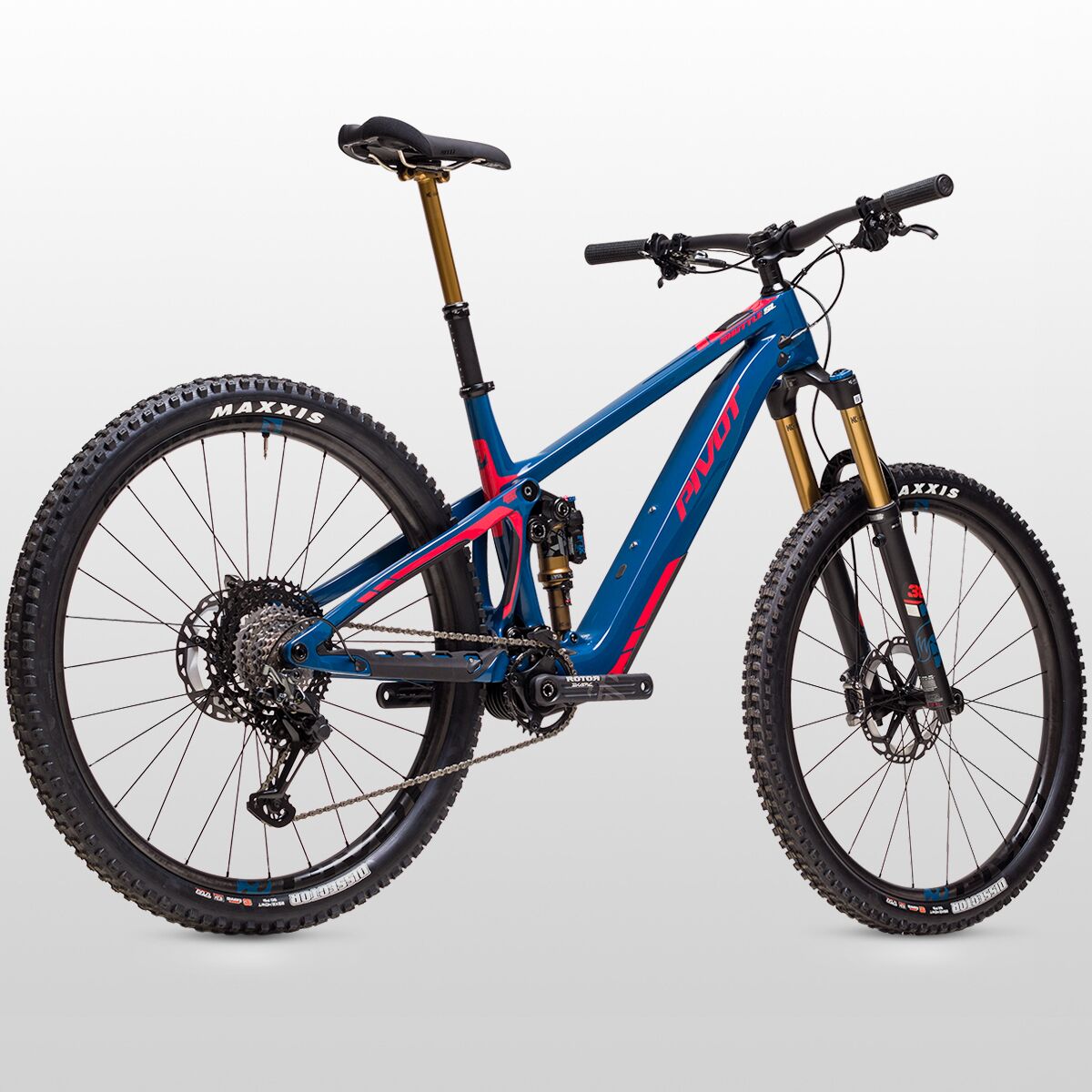

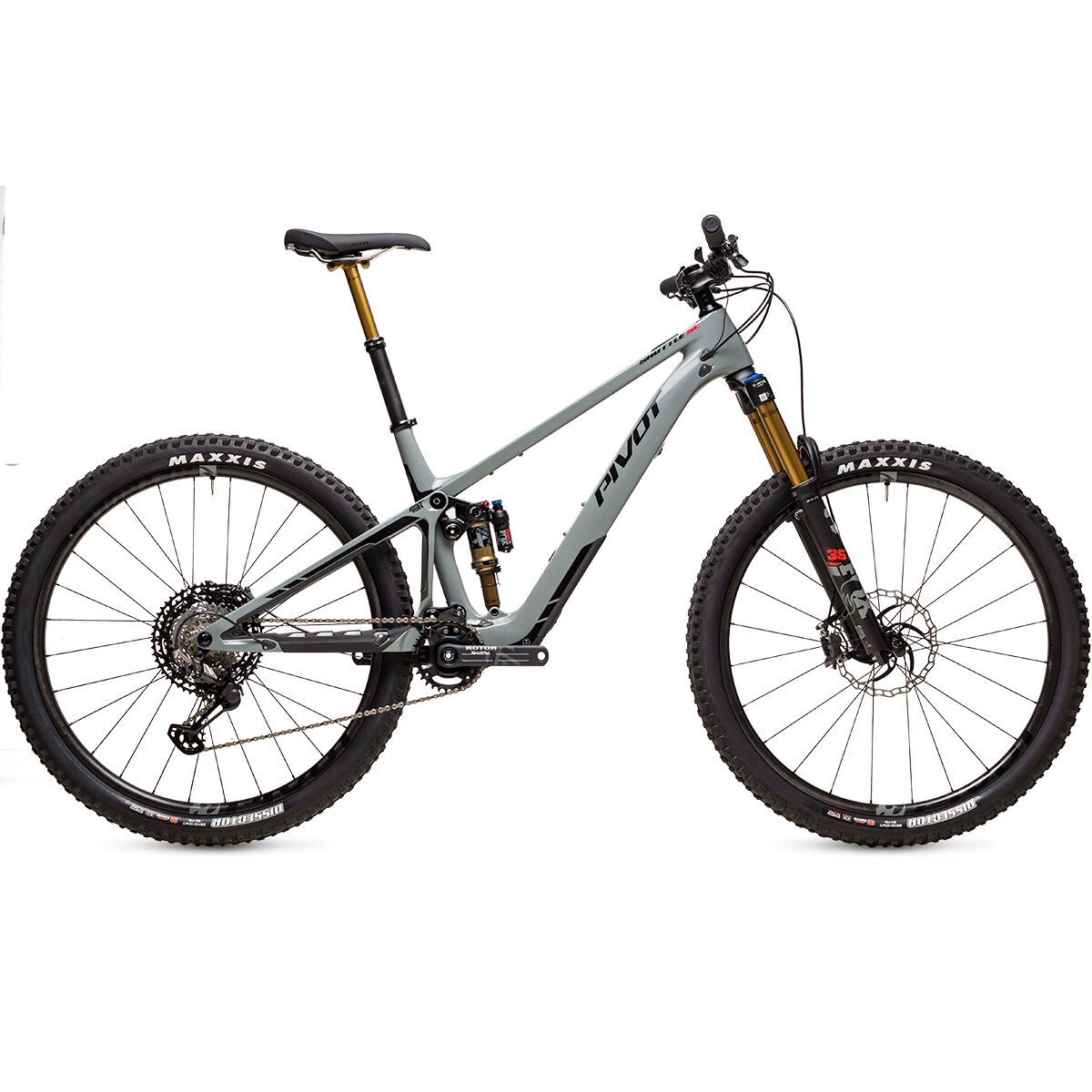

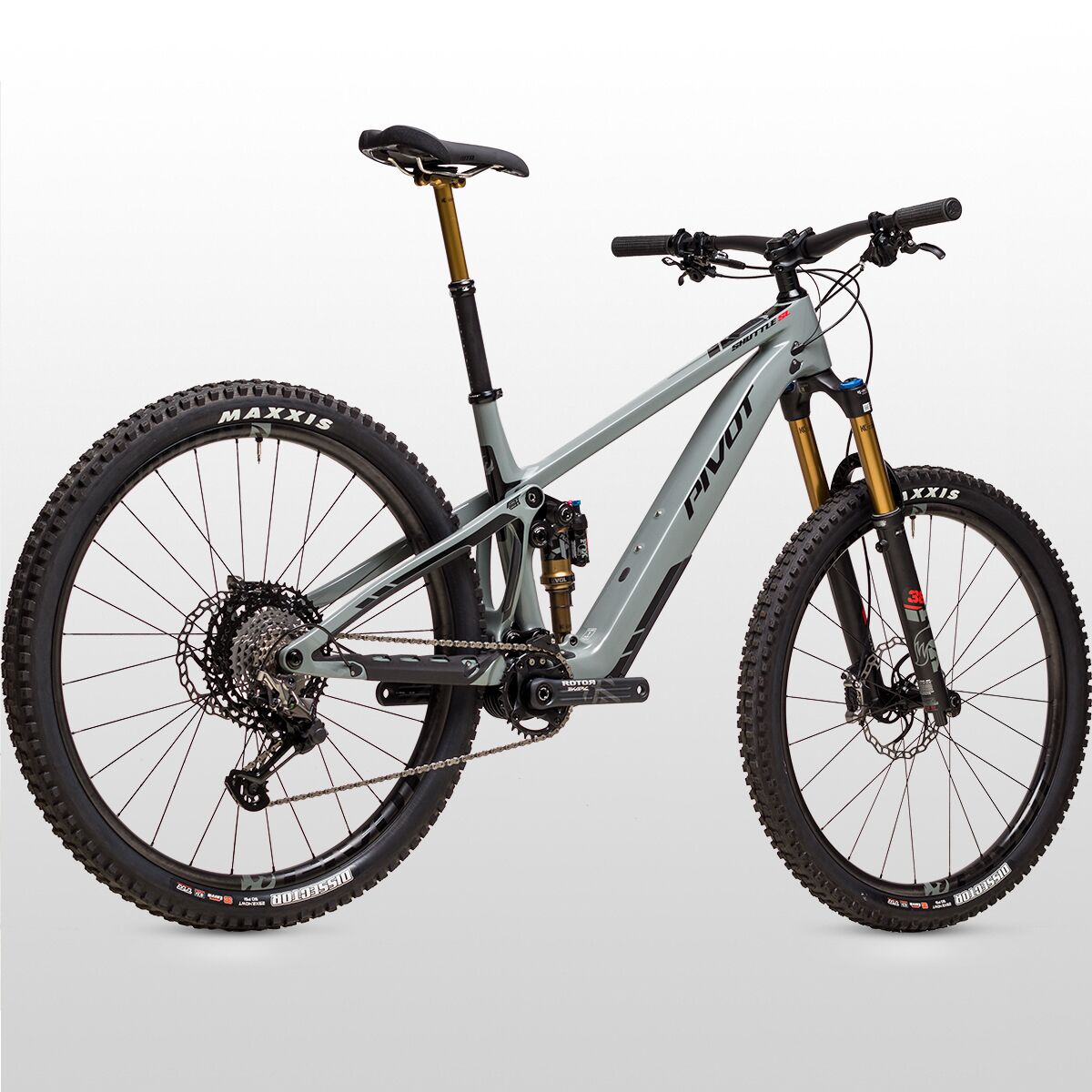

Pivot Shuttle SL Team XTR Carbon Wheel E-Bike

Why We Like The Pivot Shuttle SL Team XTR Carbon Wheel e-Bike

Pivot is known for high-performance mountain bikes, and the Shuttle SL EMTB is no different. The first things we noticed about the Shuttle SL were its low weight and crisp handling. Utilizing Pivot´s full carbon hollow core frame construction and the 9.3lb FAZUA Ride 60 system, Pivot was able to create a super light trail EMTB that rides almost exactly like our favorite analog trail bike. The Shuttle SL is ready for big days out on the trail where smashing climbs and sending side hits are both on the menu. 132mm of Fox Factory-supported DW-Link rear travel paired with the 60Nm motor offers up plenty of power and pop to throw the bike around on all the new features we find out there without sacrificing traction when the trail gets steep. And although it´s nearly impossible to fully drain the battery, if we find ourselves miles from the trailhead with no juice left, the Shuttle SL is virtually drag-free with the pedal assist turned off.

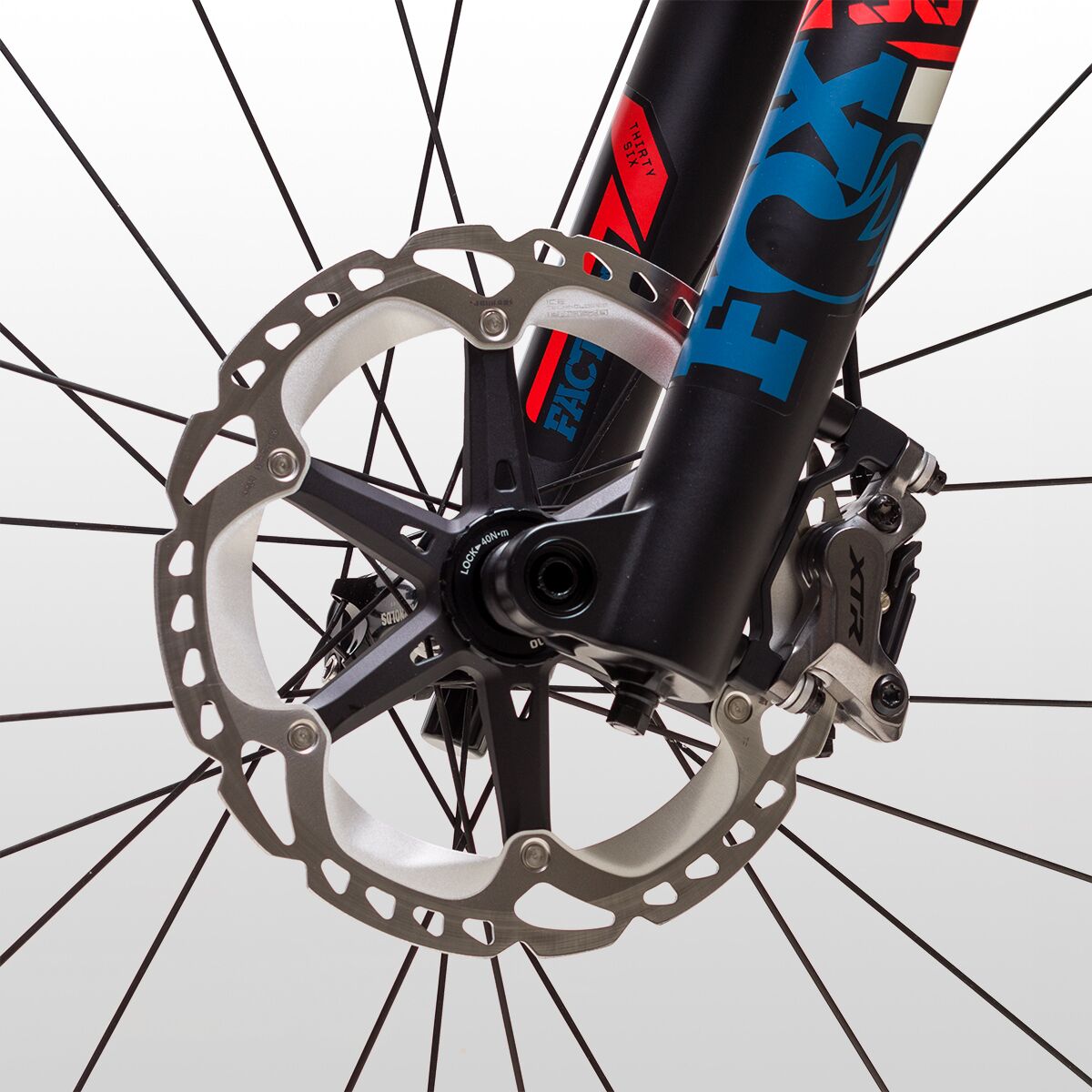

The premium Shuttle SL Team XTR build is all about sending new lines and having fun on the trail. The 12-speed XTR drivetrain brings the ultra-smooth, reliable shifting that we expect from Shimano to a lightweight package that doesn´t sacrifice any gear range. An Ebike-tuned Fox Factory 36 fork with 150mm of travel supports the front end to absorb those big hits on the descent, while a set of 29er Reynolds Blacklabel carbon wheels laced to Industry Nine Hydra hubs make sure we can roll over just about anything. When we find ourselves having to stop on a dime or dump speed quickly, 4-piston Shimano XTR brakes bolstered by a 203mm rotor up front and a 180mm rotor in the rear provide plenty of stopping power. A proper trail bike wouldn´t be complete without a solid dropper post, and the Fox Transfer Factory Series offers ultra-reliable modulation to get the saddle out of the way for techy rock gardens and rowdy descent. The Pivot Shuttle SL Team XTR is made to handle like a trail bike, but it´s ready to take us to lines we´ve only seen in our dreams.

*Due to a high demand in the global supply chain and bike industry, material weight and exact components are subject to change. We are working diligently to keep tech specs updated, and any adjustments will be of equal or better spec level. If you have any questions, reach out to a Gearhead by chatting online or calling 1-888-276-7130.

Heads up - We do our best to keep bike specs and images current, but occasional component changes can happen without warning-and sometimes the photos might not show the exact build you´ll receive. If you want to double-check the details, our Gearheads are always here to help.

Details

• Superlight eMTB built to smash climbs and send bigger moves
• Integrated Fazua 60 motor system allows unmatched weight savings
• 450 Watts of peak power offer plenty of punch to tackle any trail
• DW-Link suspension allows a lively feel and pedaling performance
• Shimano XTR drivetrain provides ultra-smooth, reliable shifting
• Carbon frame damps vibrations and is responsive
• Fox Factory 36 fork offers 150mm of bump-busting travel
• 29in Reynolds carbon wheels keep us rolling over any obstacle
• Item #PIV1X03

Tech Specs

Frame Material

carbon

Suspension

DW-Link

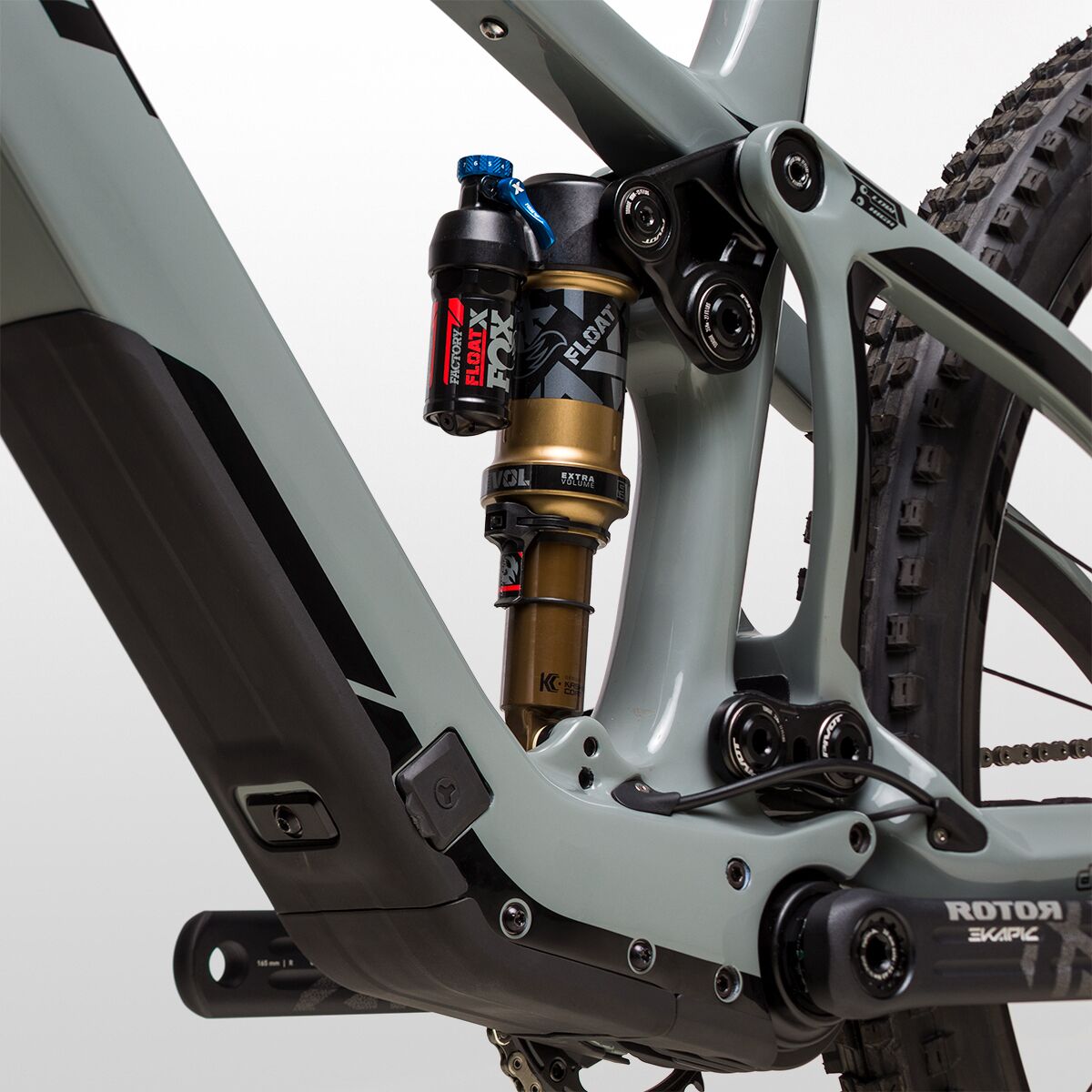

Rear Shock

Fox Factory Float X

Rear Travel

132mm

Fork

Fox Factory E-MTB 36

Front Travel

150mm

Headset

Pivot Precision Sealed Cartridge

Shifters

Shimano XTR, 12-Speed

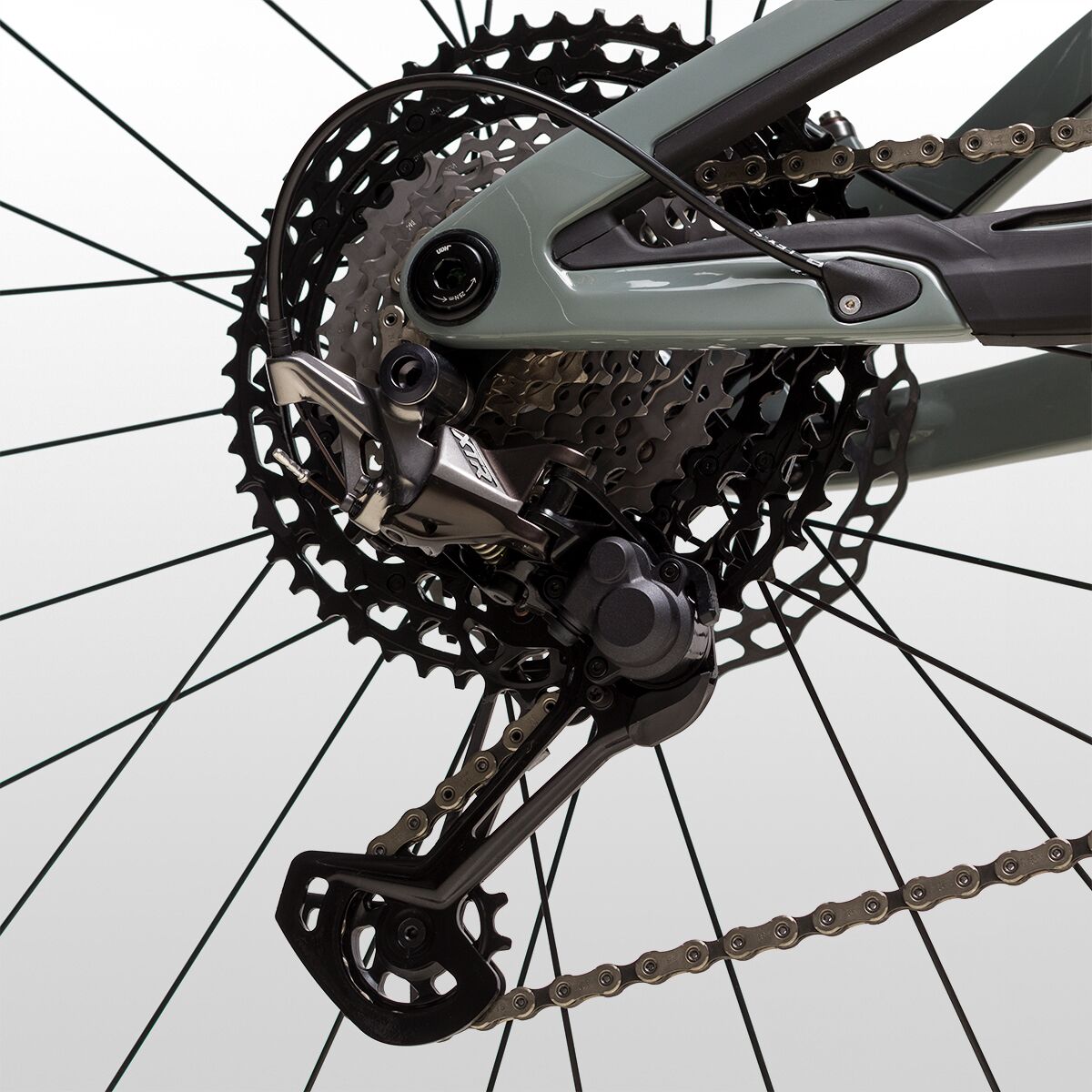

Rear Derailleur

Shimano XTR, 12-Speed

Drive System

Fazua Ride 60

Motor Power

450W

Battery Type

internal, rechargeable

Battery Energy

430Wh

Max Torque

60Nm

Max Speed

20mph

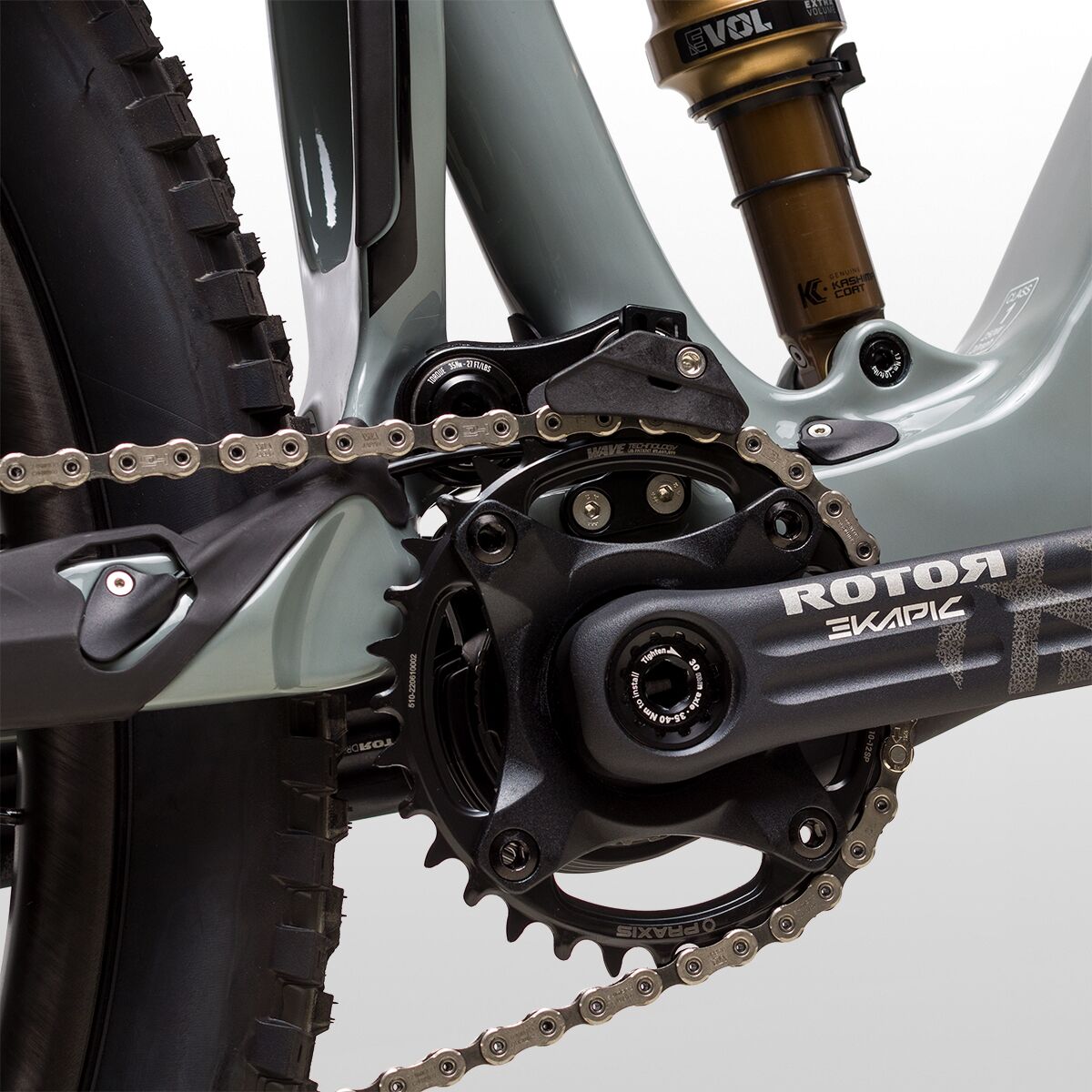

Crankset

ROTOR EKAPIC E-MTB

Chainring Sizes

32t

Crank Arm Length

165mm

Cassette

Shimano XTR, 12-Speed

Cassette Range

10-51t

Chain

Shimano XTR, 12-Speed

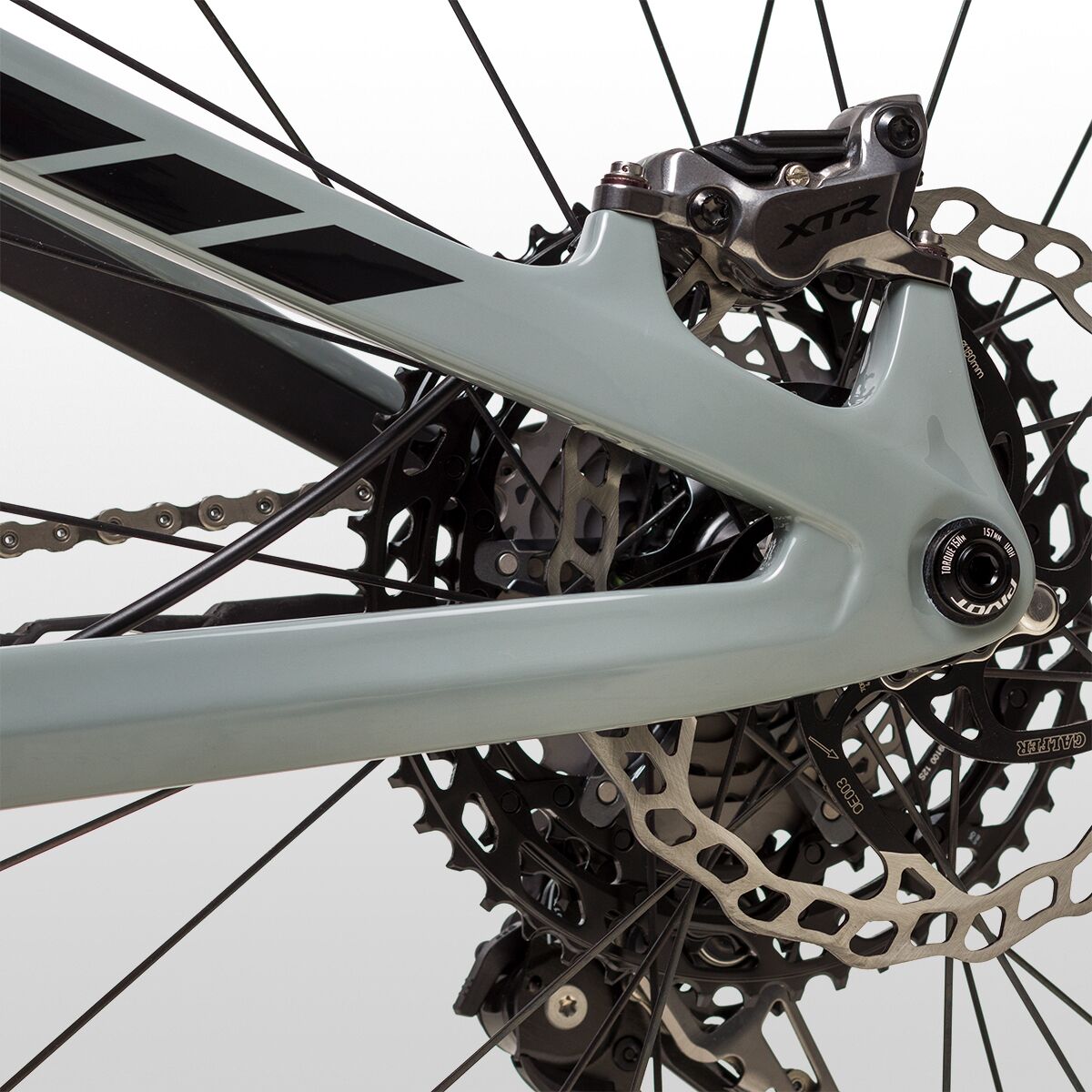

Brakeset

Shimano XTR M9120

Brake Type

4-piston, hydraulic disc

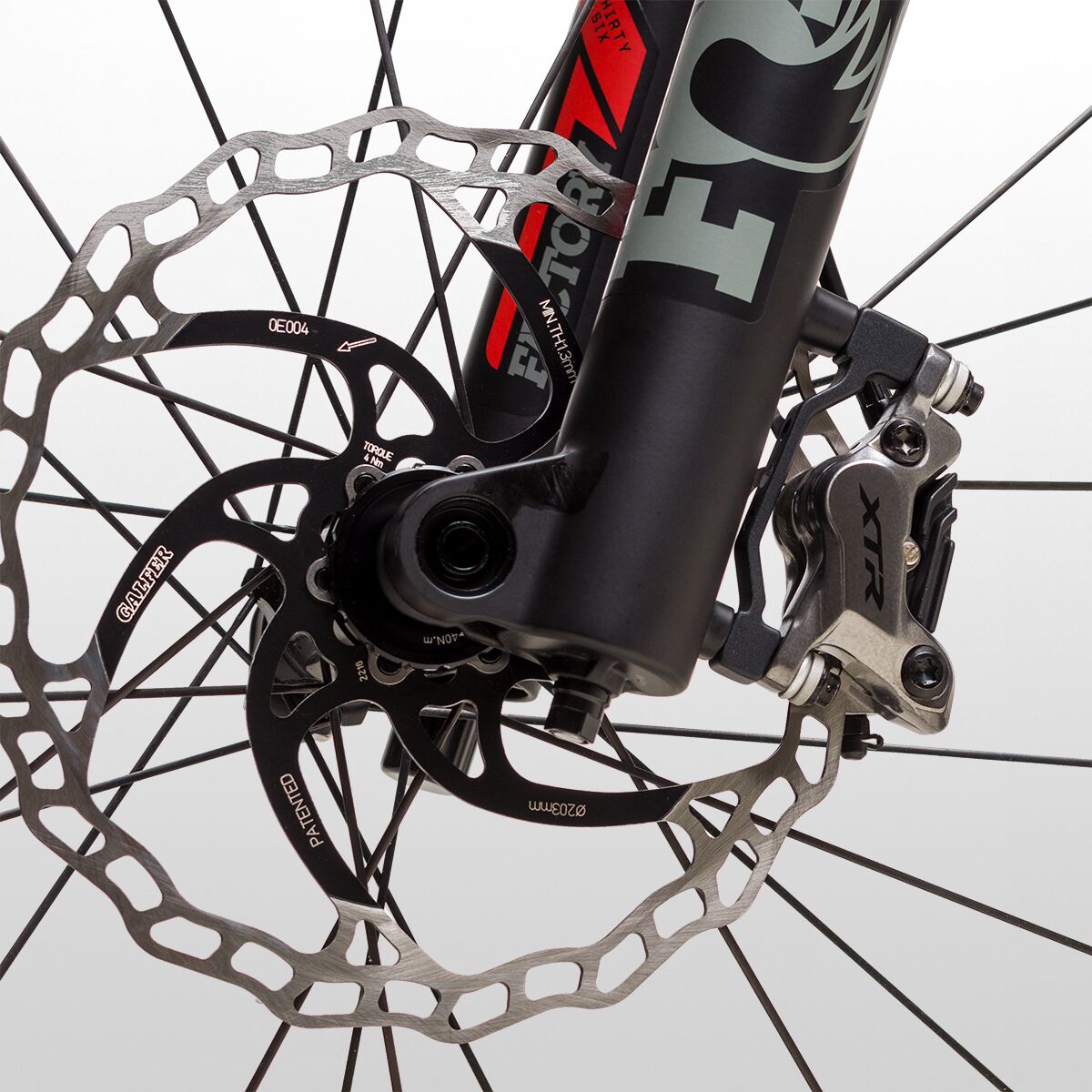

Rotors

Galfer, [front] 203mm, [rear] 180mm

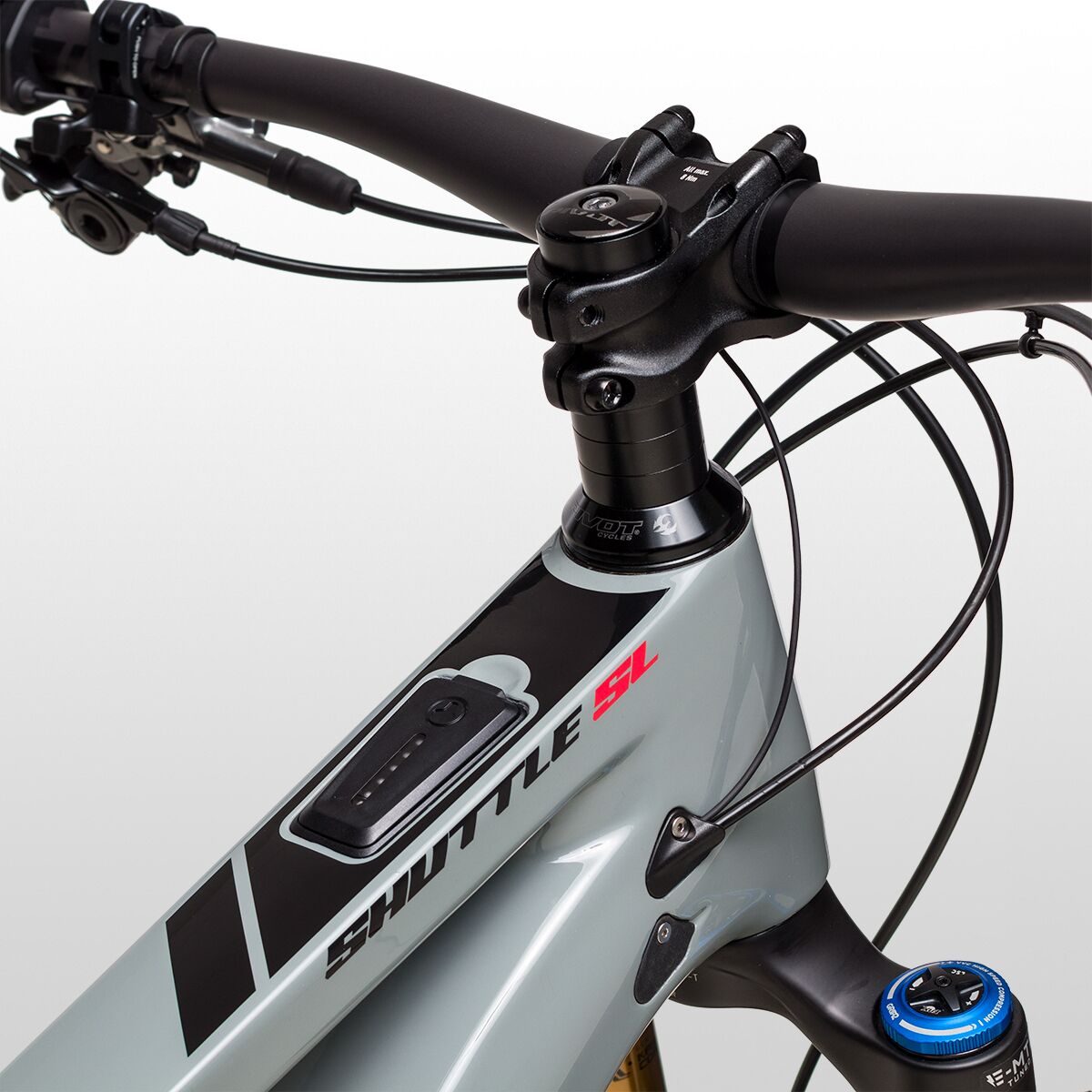

Handlebar

Phoenix Team Low Rise Carbon

Handlebar Width

780mm

Grips

Phoenix Factory Lock-On

Stem

Phoenix Team Enduro/Trail

Stem Length

45mm

Saddle

Phoenix WTB Volt Team (medium width)

Seatpost

Fox Transfer Factory Series, 31.6mm

Seatpost Travel

[small] 150mm, [medium, large] 175mm, [x-large] 200mm

Wheelset

Reynolds Blacklabel 309/289 XC, 29in, carbon

Hubs

Industry Nine Hydra

Front Axle

15 x 110mm Boost

Rear Axle

12 x 157mm Super Boost

Tire Clearance

29 x 2.4in

Tires

[front, rear] Maxxis Dissector, WT, TR, 3C, EXO, MAXXTERRA

Tire Size

[front, rear] 29 x 2.4in

Pedals

not included

Includes

Universal Derailleur Hanger

Claimed Weight

[large] 40lb (18.16kg)

Activity

cross-country, trail

Manufacturer Warranty

[frames, linkage bearings] lifetime (bike must be registered no later than 30 days after date of purchase or by April 1, 2025, whichever is later), [paint, coating, finish, decals] limited 1-year, [Phoenix-branded components] limited 5-year
