Pivot Shuttle SL AM Pro X0 T-Type EXTD E-Bike

Shuttle SL/AM Pro X0 redefines lightweight e-MTB performance with Bosch SX and Range Extender power

What Our Gearhead® Experts Are Saying:

"The first time I rode the Shuttle SL/AM with the Bosch SX system, I was blown away—it felt like riding my trail bike, just with an extra set of lungs. The handling is razor sharp, the frame feels super nimble, and the power delivery is smooth and natural. Add in the PowerMore 250 range extender, and you´ve got the freedom to go long without sacrificing weight or agility."

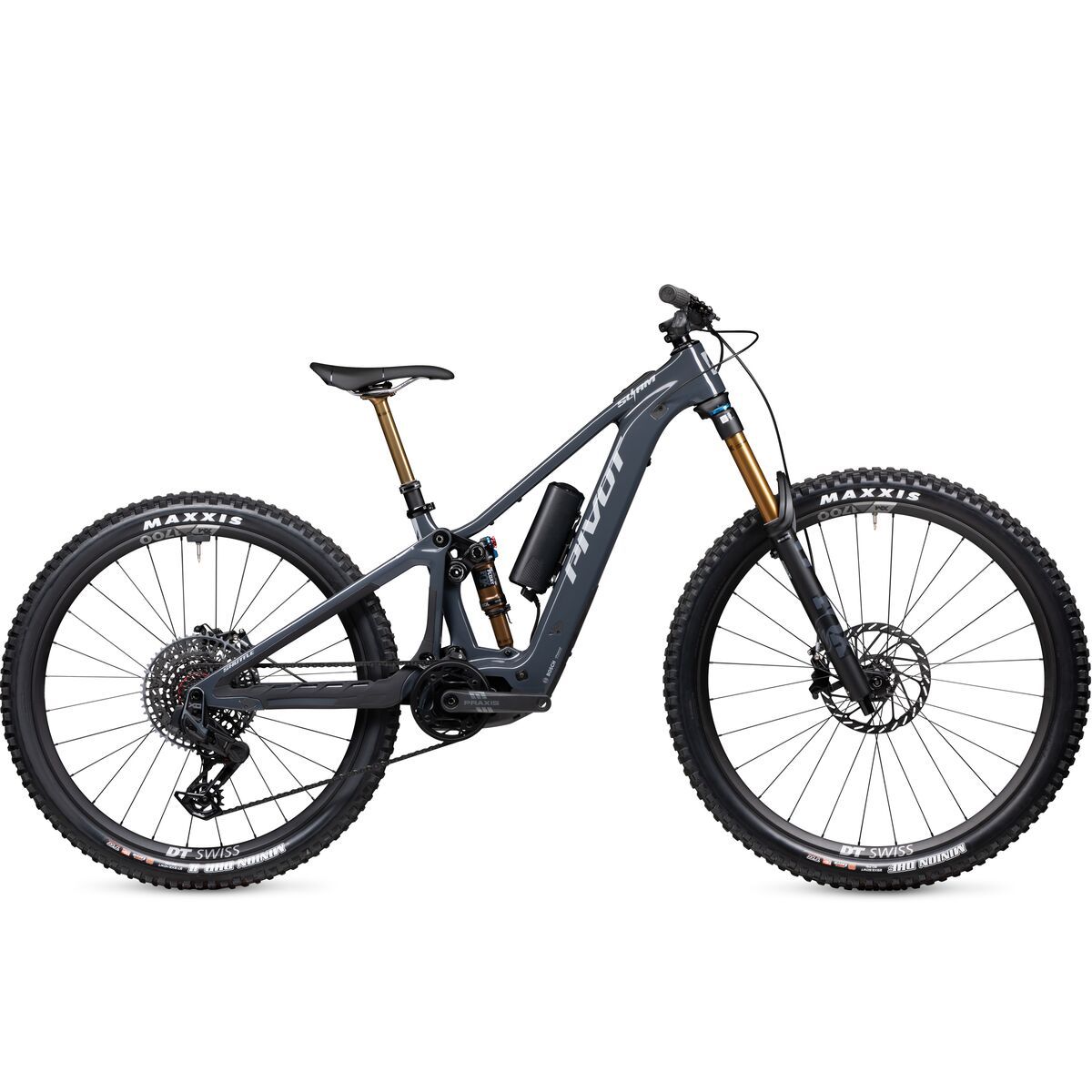

The Pivot Shuttle SL/AM Pro X0 is built for riders who want e-MTB power without compromise. Weighing in at under 40 pounds, it’s shockingly light—but packed with capability. Thanks to the Bosch Performance SX motor and a sleek 400Wh internal battery, it delivers up to 600 watts of pedal-assist power that feels effortlessly natural. And when we’re chasing bigger mileage or longer backcountry missions, the included Bosch PowerMore 250 Range Extender, adds 250Wh of extra juice without disrupting the bike’s sleek silhouette or nimble feel.

Engineered with a carbon frame and DW-Link suspension, the Shuttle SL/AM pairs 140mm of plush rear travel with a 160mm Fox Factory 36 fork up front. DT Swiss XM1700 wheels, Maxxis EXO+ tires, and SRAM’s rock-solid X0 Eagle Transmission drivetrain round out a top-tier build that delivers power, precision, and punch on every ride.

Heads up — We do our best to keep bike specs and images current, but occasional component changes can happen without warning—and sometimes the photos might not show the exact build you’ll receive. If you want to double-check the details, our Gearheads are always here to help.

Details

• Featherweight 140mm travel e-MTB with natural-feeling pedal assist
• Bosch Performance SX motor delivers up to 600W peak power
• 400Wh internal battery plus PowerMore 250 range extender
• Fox Factory 36 GRIP X2 fork with 160mm travel for trail-tuned control
• Fox Factory Float X shock offers plush and stable rear suspension
• SRAM X0 Eagle Transmission for precise shifting under load
• DT Swiss XM1700 wheels and Maxxis Minion DHF/DHR II tires for traction and speed
• SRAM Motive Silver brakes with 200mm rotors deliver reliable stopping power
• Item #PIV1X3P

Tech Specs

Frame Material

Carbon

Suspension

DW-Link

Rear Shock

[small, medium, large, x-large] Fox Factory Float X

Rear Travel

140mm

Fork

Fox Factory 36, GRIP X2

Front Travel

160mm

Headset

Pivot Precision Sealed Cartridge

Shifters

SRAM AXS Pod Controller

Rear Derailleur

Sram X0 Eagle Transmission, 12-Speed

Drive System

Bosch Performance SX

Motor Power

600W

Battery Energy

400Wh + 250Wh

Max Torque

55Nm

Max Speed

20mph

Crankset

Praxis Alloy eCranks E-MTB

Chainring Sizes

34t

Crank Arm Length

160mm

Cassette

SRAM X0 Eagle Transmission

Cassette Range

10-52t

Chain

SRAM X0 Eagle Flattop, 12-speed

Brakeset

Sram Motive Silver, 4-piston

Brake Type

hydraulic disc

Rotors

SRAM HS2 Centerlock 200mm

Handlebar

Phoenix Race Low Rise Carbon

Handlebar Width

[small, medium] 780mm, [large, x-large] 800mm

Grips

Phoenix Factory Lock-On

Stem

Phoenix Team Enduro/Trail

Stem Length

45mm

Saddle

[small] Phoenix WTB Pro High Tail Trail, [medium, large, x-large] Phoenix RaceGrip Pro Saddle

Seatpost

Fox Transfer Factory Series, 30.9mm

Wheelset

DT Swiss XM1700

Hubs

DT Swiss 350

Front Axle

15 x 110mm Boost

Rear Axle

12 x 157mm

Tires

[front] Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, [rear] Maxxis Minion DHR II, 3C MaxxTerra, EXO+, TR

Tire Size

[small, medium, large, x-large] 29 x 2.5in, 29 x 2.4in

Pedals

not included

Extras

Bosch PowerMore 250 Range Extender

Activity

trail

Manufacturer Warranty

[bikes, frames] limited 10 year, [paint, coating, finish, decals] limited 1 year, [Pivot branded Phoenix Components] limited 5 year
