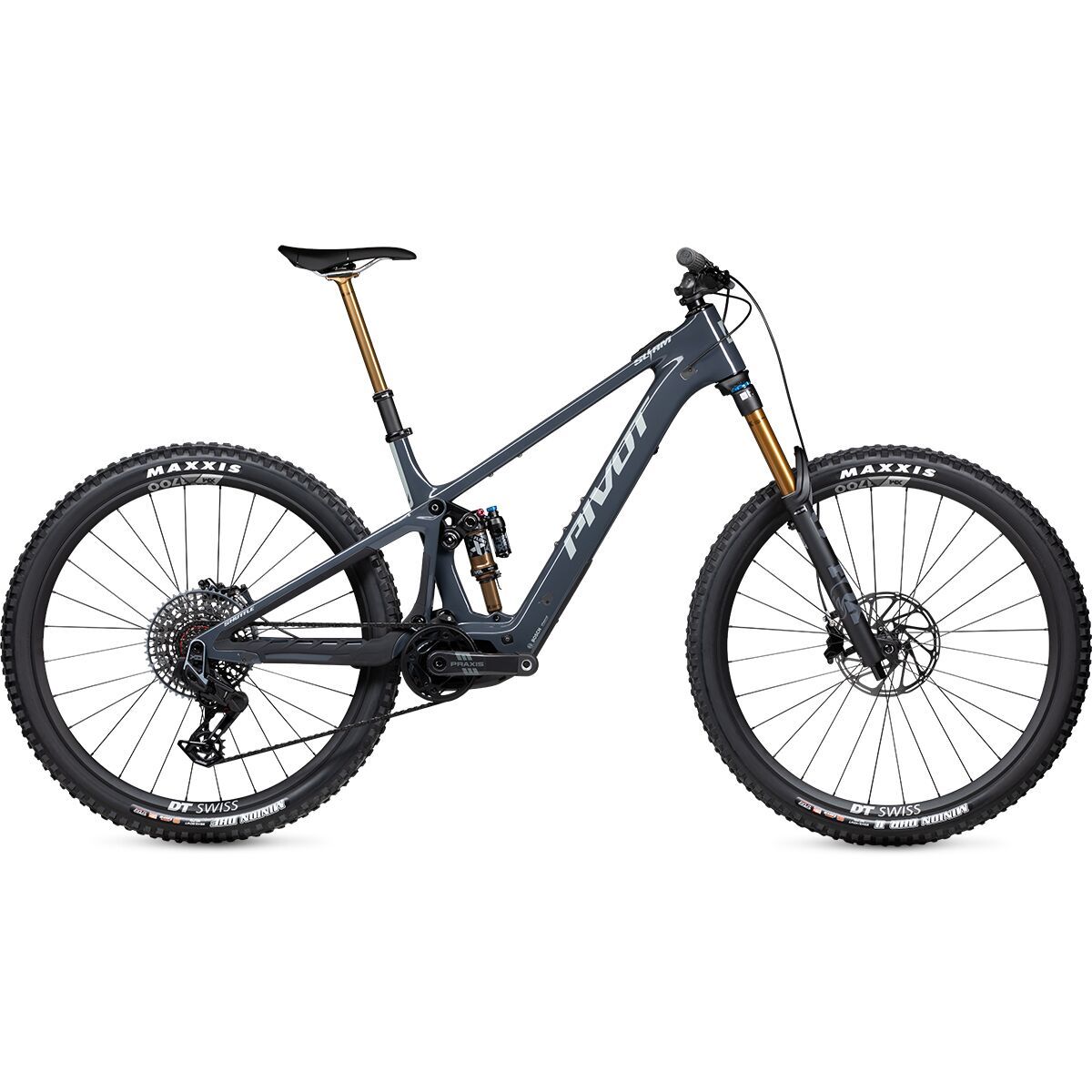

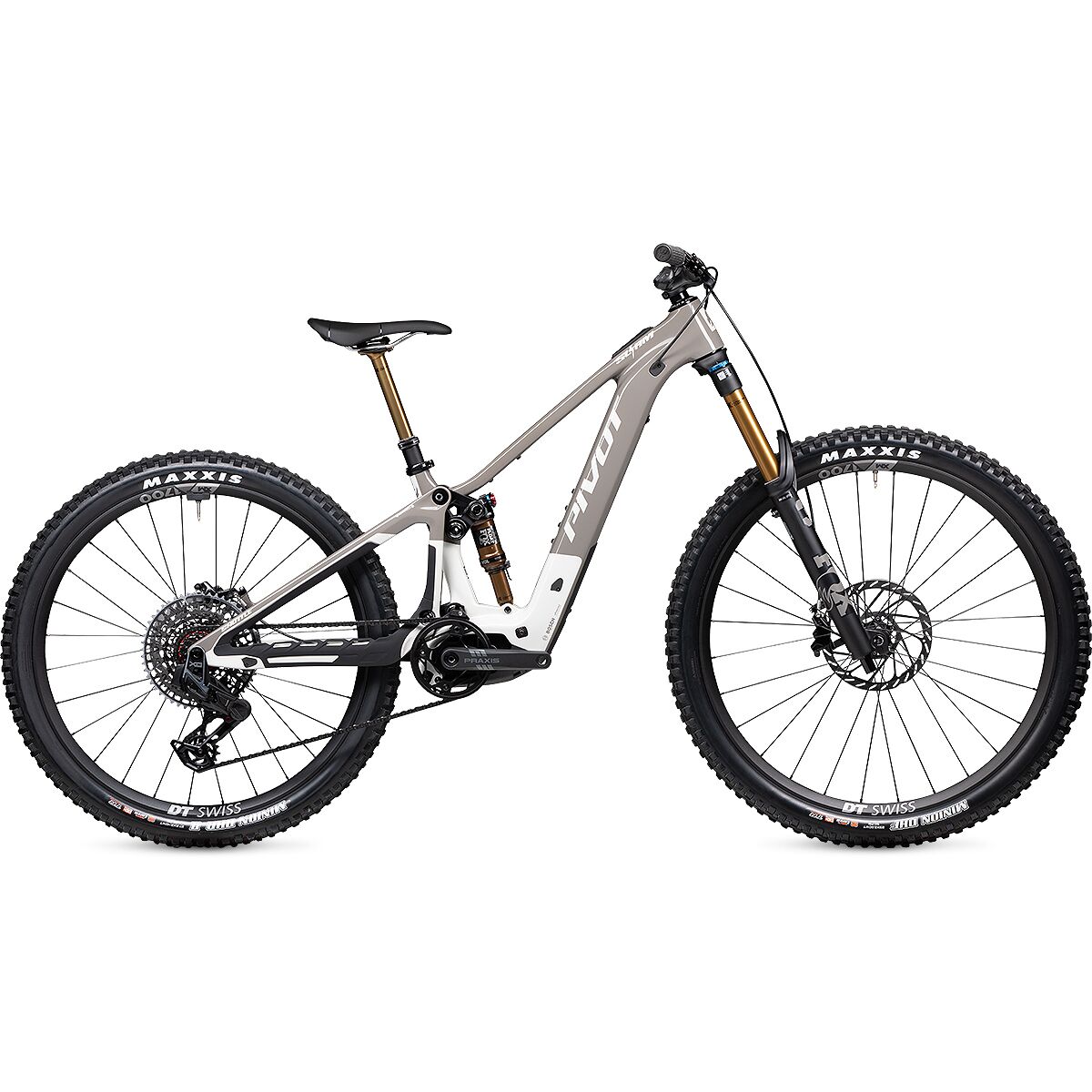

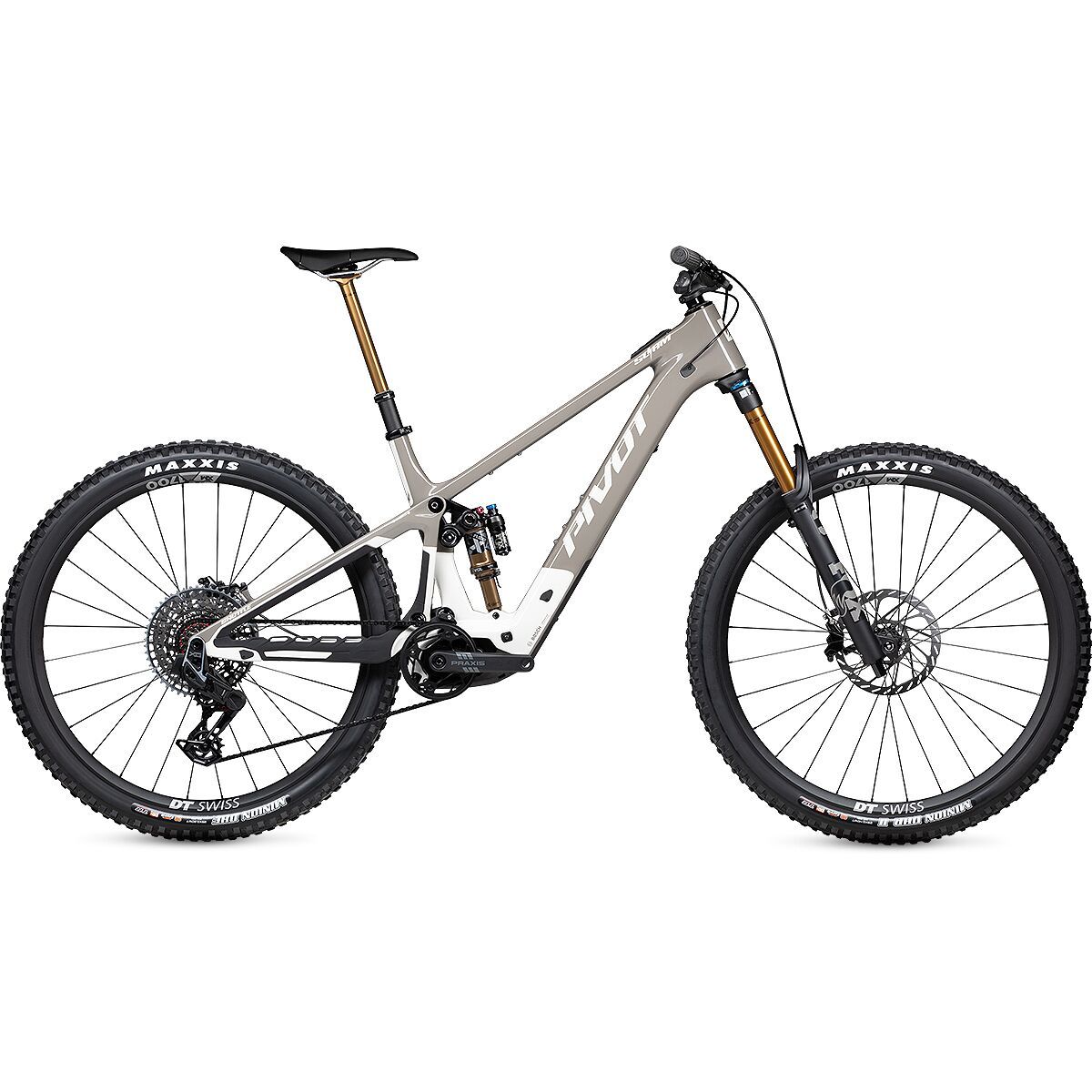

Pivot Shuttle SL AM Pro X0 T-Type E-Bike

Shuttle SL/AM Pro X0 redefines lightweight e-MTB performance with Bosch SX power

What Our Gearhead® Experts Are Saying:

"The first time I rode the Shuttle SL/AM with the Bosch SX system, I was blown away—it felt like riding my trail bike, just with an extra set of lungs. The handling is razor sharp, the frame feels super nimble, and the power delivery is smooth and natural. With this kind of agility and under 40 pounds, it’s hard to believe it’s an e-bike."

The Pivot Shuttle SL/AM Pro X0 delivers a radical shift in how we experience e-mountain biking. By pairing the ultralight Bosch Performance SX system with a carbon frame and a 400Wh in-tube battery, Pivot gives us a machine that shreds like a true trail bike—only faster, smoother, and more confident on every climb and descent. At just under 40 pounds, it’s hard to believe this thing packs a motor.

Built around the award-winning DW-Link platform, the Shuttle SL/AM features 140mm of plush, efficient rear travel and a 160mm Fox Factory 36 GRIP X2 fork to smooth out fast, chunky descents. Pivot’s tuned geometry gives it a nimble but planted ride feel, and the Bosch SX drive unit dishes out up to 600 watts of peak power with pedal-assist that feels impossibly natural. From switchback-heavy ascents to full-send descents, this bike simply disappears beneath you.

With top-tier components like a SRAM X0 Eagle Transmission drivetrain, DT Swiss XM1700 wheels, and Maxxis EXO+ tires with a factory-tuned suspension package, this is a dream build ready to hit technical trails straight out of the shop.

Heads up — We do our best to keep bike specs and images current, but occasional component changes can happen without warning—and sometimes the photos might not show the exact build you’ll receive. If you want to double-check the details, our Gearheads are always here to help.

Details

• Featherweight 140mm travel e-MTB with natural-feeling pedal assist
• Bosch Performance SX motor delivers up to 600W peak power
• 400Wh in-tube battery keeps weight low and handling lively
• Fox Factory 36 GRIP X2 fork with 160mm travel for trail-tuned control
• SRAM X0 Eagle Transmission for precise shifting under load
• SRAM Motive Silver 4-piston brakes with 200mm rotors for confidence at speed
• DT Swiss XM1700 wheels with Maxxis Minion DHF/DHR II tire combo
• X-small only offered with mixed wheel
• Item #PIV1X3O

Tech Specs

Frame Material

Carbon TURQ

Suspension

DW-Link

Rear Shock

[x-small] Fox Factory Float, [small, medium, large, x-large] Fox Factory Float X

Rear Travel

140mm

Fork

Fox Factory 36, GRIP X2

Front Travel

160mm

Headset

Pivot Precision Sealed Cartridge

Shifters

SRAM AXS Pod Controller

Rear Derailleur

Sram X0 Eagle Transmission, 12-Speed

Drive System

Bosch Performance SX

Motor Power

600W

Battery Energy

400Wh

Max Torque

55Nm

Max Speed

20mph

Crankset

Praxis Alloy eCranks E-MTB

Chainring Sizes

34t

Crank Arm Length

160mm

Cassette

SRAM X0 Eagle Transmission

Cassette Range

10-52t

Chain

SRAM X0 Eagle Flattop, 12-speed

Brakeset

Sram Motive Silver, 4-piston

Brake Type

hydraulic disc

Rotors

SRAM HS2 Centerlock 200mm

Handlebar

Phoenix Race Low Rise Carbon

Handlebar Sweep

8° backsweep, 5° upsweep

Handlebar Width

[x-small] 760mm, [small, medium] 780mm, [large, x-large] 800mm

Grips

Phoenix Factory Lock-On

Stem

Phoenix Team Enduro/Trail

Stem Length

45mm

Saddle

[small] Phoenix WTB Pro High Tail Trail, [x-small, medium, large, x-large] Phoenix RaceGrip Pro Saddle

Seatpost

Fox Transfer Factory Series 30.9mm

Wheelset

DT Swiss XM1700

Hubs

DT Swiss 350

Front Axle

15 x 110mm Boost

Rear Axle

12 x 157mm

Tires

[front] Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, [rear] Maxxis Minion DHR II, 3C MaxxTerra, EXO+, TR

Tire Size

[x-small] 27.5 x 2.5in, 29 x 2.4in, [small, medium, large, x-large] 29 x 2.5in, 29 x 2.4in

Pedals

not included

Activity

trail

Manufacturer Warranty

[bikes, frames] limited 10 year, [paint, coating, finish, decals] limited 1 year, [Pivot branded Phoenix Components] limited 5 year
